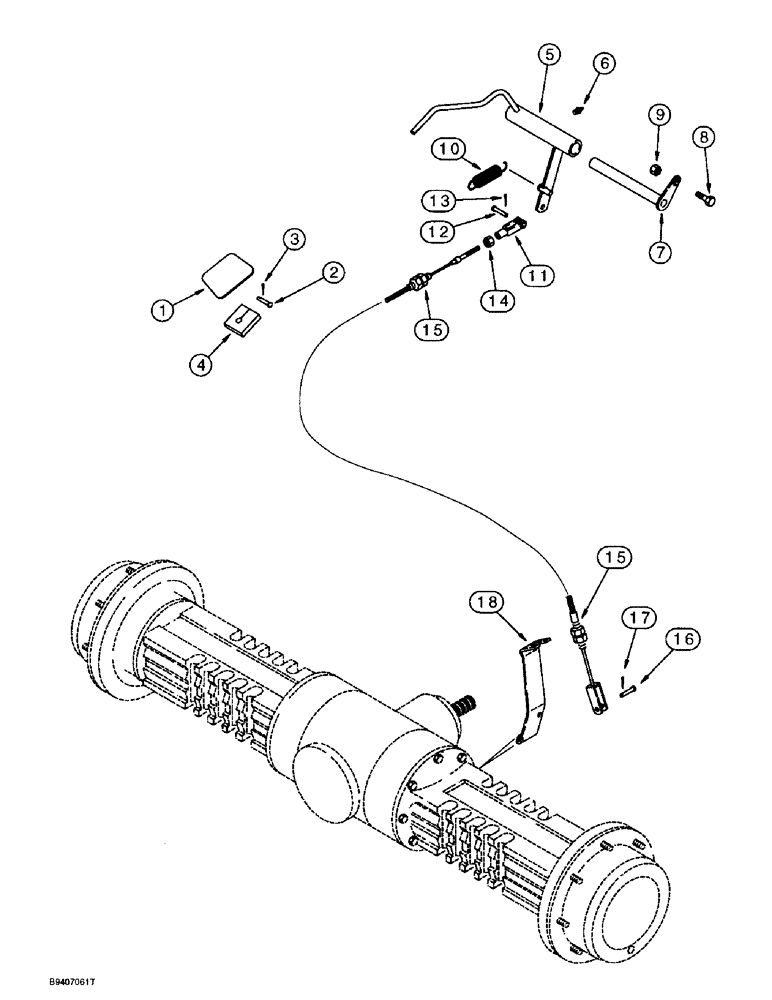

Запчасти Case 580SL (6-50) - REAR AXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

115393A1

PEDAL

- accelerator, differential lock

1шт.

2

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis, 1/4 inch

1шт.

3

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

4

137747A1

SEAL

- foam, pedal

1шт.

5

127821A2

LEVER

- differential lock

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

D140035

SHAFT,180mm L

Lever pivot

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

139107A1

SPRING

- return, differential lock pedal

1шт.

11

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

12

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

15

127536A1

CABLE

- differential lock, to rear axle

1шт.

16

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

187562A2

SUPPORT

BRACKET - cable support, mounts on rear axle with existing hardware, not included in 114367A2 rear drive axle, must purchase separately; however, is included with 114367A3, 114367A4 or 114367A5 rear drive axle

1шт.
