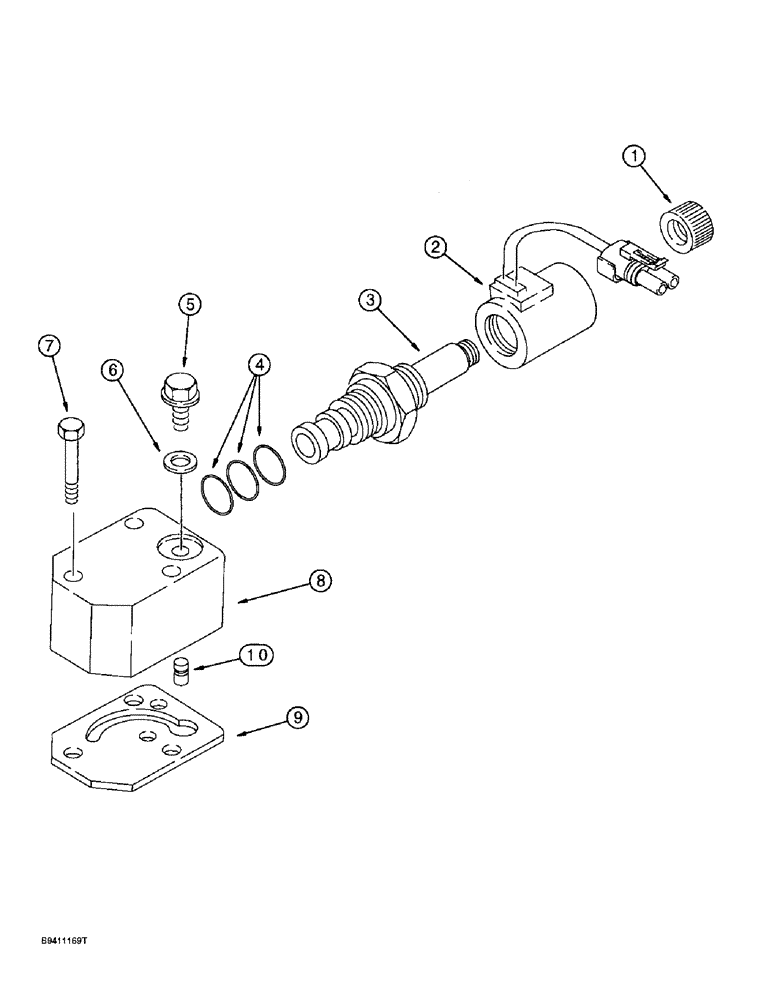

Запчасти Case 580SL (6-44) - TRANSMISSION ASSEMBLY, SOLENOID VALVE - FOUR WHEEL DRIVE (06) - POWER TRAIN

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 10, valve assy. and parts in Figures 6-24 and 6-28 - 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY - solenoid, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT - seal, solenoid, includes (1 each) 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order 190432A1 valve

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

5

181100A1

PLUG,1/8 CAS x 8

- valve

2шт.

6

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

190429A1

HOUSING

BODY - solenoid valve

1шт.

9

190430A1

GASKET

GASKET - body to transmission housing

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

10

190431A1

VALVE

- solenoid, installed between Ref. 8 and Ref. 9

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 4, 6 and 9, also see kit parts on Figures 6-24, 6-28 and 6-32 - 6-42

1шт.
