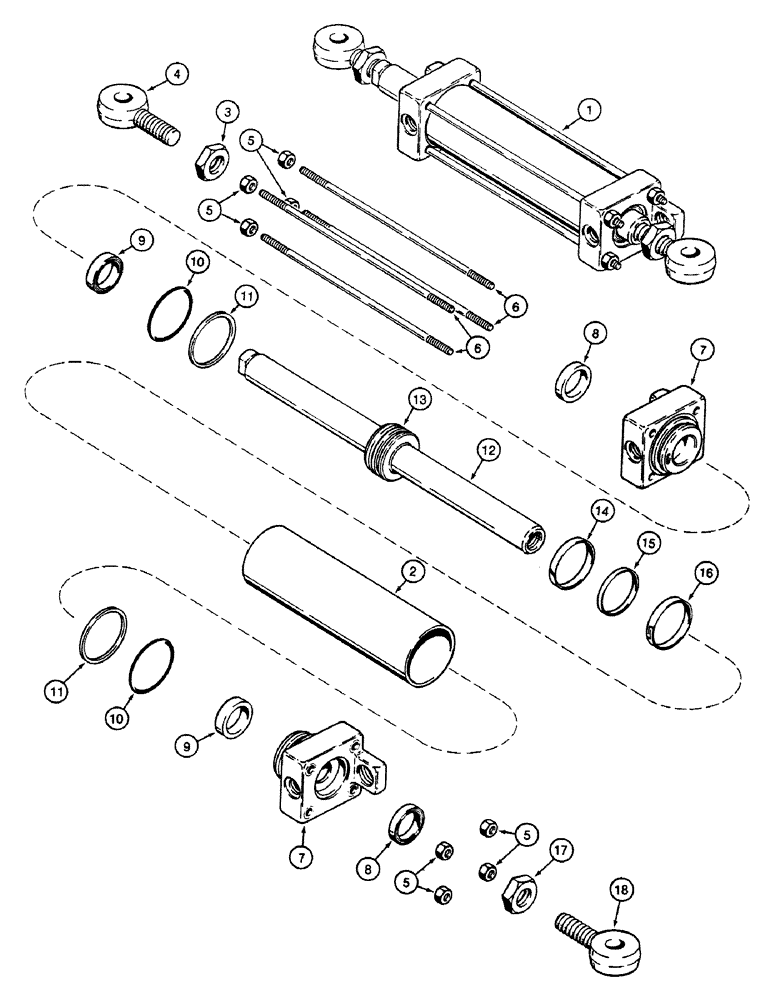

Запчасти Case 580SK (5-18) - STEERING CYLINDER 2WD (05) - STEERING

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSY Consists of : 2 - 18

1шт.

G110045

KIT

Seal Consists of : 8-11,14,15,16

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

CYLINDER

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread

1шт.

4

G106832

BALL JOINT

EYE Left-hand Thread

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

6

G106817

TIE-ROD

TIE ROD 338 mm

4шт.

G109996

GLAND

ASSY Consists of : 7 - 11

2шт.

7

GLAND

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

O RING

1шт.

G107721

ROD ASSY.

Consists of : 12,13

1шт.

12

ROD

1шт.

13

PISTON

1шт.

14

G105187

RING

1шт.

15

G104439

RING

Inner

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

Outer

1шт.

17

129-169

JAM NUT,Jam, 7/8"-14, G5

1шт.

18

G106813

BALL JOINT

EYE

1шт.
