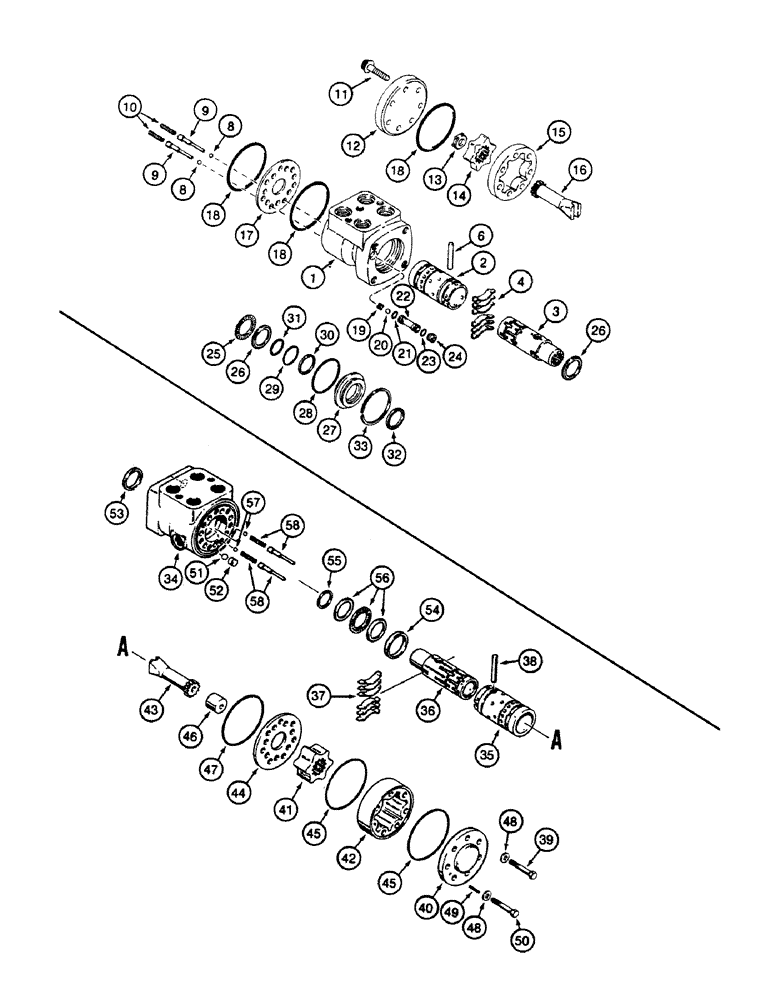

Запчасти Case 580SK (5-14) - STEERING CONTROL VALVE (05) - STEERING

D135338

PUMP, HYDRAULIC

VALVE ASSY Eaton : 263-1061-004 Consists of : 1 - 33

1шт.

VALVE ASSY Danfoss : OSPB125LS Consists of : 34 - 58

1шт.

1

HOUSING

1шт.

2

SLEEVE

1шт.

3

SPOOL

1шт.

N14250

KIT

Consists of : 4,5

1шт.

4

SPRING

6шт.

5

SPACER Not Illustrated

2шт.

6

L30888

PIN

1шт.

8

211-204

BALL

2шт.

9

N14764

PLUG

RETAINER

2шт.

10

N14763

SPRING

2шт.

11

H189555

BOLT,M6 x 20mm, Cl 8.8

5/16 x 41 mm

7шт.

12

D82809

COVER

1шт.

13

K964246

SPACER

1шт.

N14154

ROTOR

SET Gerotor Consists of : 14,15

1шт.

14

ROTOR

1шт.

15

STATOR

1шт.

16

L30878

DRIVE SHAFT

1шт.

17

S113037

PLATE

SPACER

1шт.

18

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

3шт.

19

L35368

RETAINER

1шт.

20

211-208

BALL,5/16" Dia

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

Inner, 7/16 x 5/16 x 1/16 in

1шт.

22

D82806

VALVE SEAT

1шт.

23

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Outer

1шт.

24

D82805

SET SCREW

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

26

D82804

RACE

WASHER

2шт.

27

N13312

CYLINDER END CAP

RETAINER

1шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

29

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

Inner

1шт.

30

N13314

RING

1шт.

31

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Inner

1шт.

32

A28211

OIL SEAL

Outer

1шт.

33

S110169

WASHER

RING

1шт.

34

HOUSING

1шт.

35

SLEEVE

1шт.

36

SPOOL

1шт.

37

N14219

SET OF PARTS

SPRING Set of 6

1шт.

38

3112269R1

PIN

1шт.

39

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

40

3112273R1

COVER

BUSHING

1шт.

N14221

ROTOR

SET Gerotor Consists of : 41,42

1шт.

41

ROTOR

1шт.

42

STATOR

1шт.

43

538915R1

DRIVE SHAFT

1шт.

44

3112276R1

PLATE

1шт.

45

V35605

O-RING

O RING

2шт.

46

N14220

SPACER

1шт.

47

V35603

O-RING,1.5mm Thk x 80.5mm ID

O RING

1шт.

48

538920R1

WASHER

7шт.

49

3112271R1

PIN, ROLL

1шт.

50

K964166

BOLT,M10 x 1.25 x 35mm, Cl 8.8

1шт.

51

3112270R1

BALL

1шт.

52

3112272R1

BUSHING

1шт.

53

V35600

SEAL

Outer

1шт.

54

3112264R1

RING

1шт.

55

N14217

SEAL

Inner

1шт.

56

N14218

BEARING ASSY

1шт.

57

N14222

BALL

2шт.

58

N14223

PLUG

PIN

2шт.
