(5-10) - STEERING HYDRAULIC CIRCUIT, SERVOPOWER VERSION, S/N JJH0046382 AND UP

Запчасти Case 580SK (5-10) - STEERING HYDRAULIC CIRCUIT, SERVOPOWER VERSION, S/N JJH0046382 AND UP (05) - STEERING

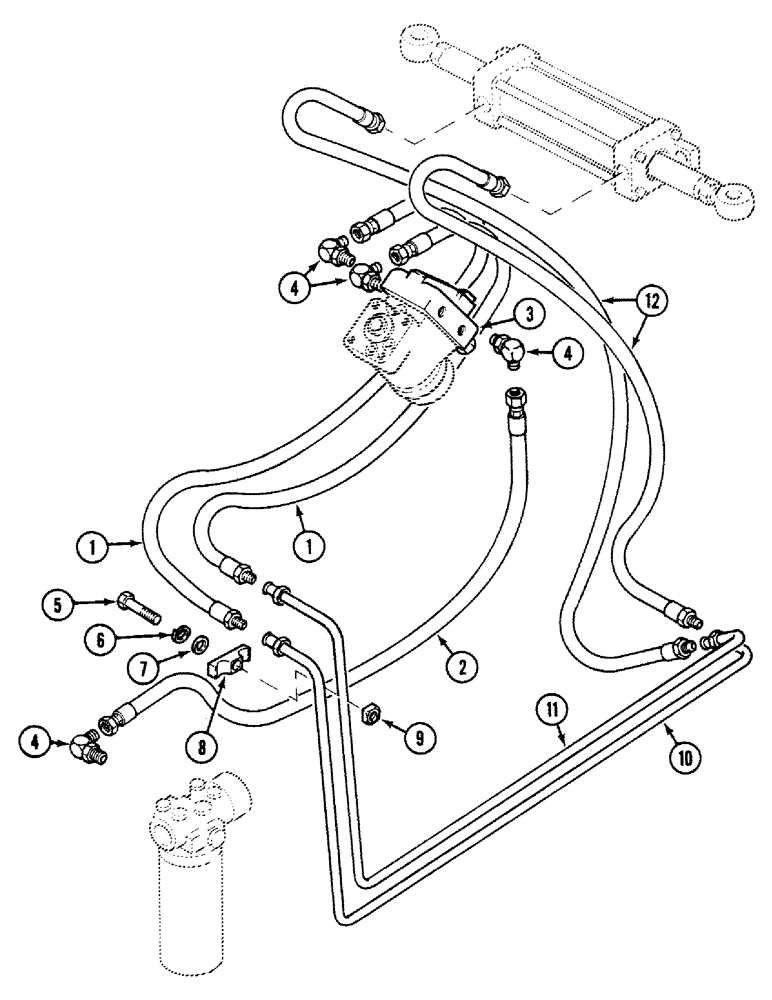

Схема запчастей Case 580SK - (5-10) - STEERING HYDRAULIC CIRCUIT, SERVOPOWER VERSION, S/N JJH0046382 AND UP (05) - STEERING
8
1
4
2
6
4
5
1
10
9
12
3
7
11
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

113394A1

HOSE

2шт.

2

113396A1

HOSE

Return

1шт.

3

113398A1

VANEUM GAUGE

VALVE ASSY

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

6

492-11038

LOCK WASHER,3/8"

3шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

8

D120679

CLAMP,Tube, 1/2"

3шт.

9

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

10

D146282

PIPE

Right

1шт.

11

D146280

PIPE

Left

1шт.

12

D124648

HOSE

2шт.
