(5-08) - STEERING HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381

Запчасти Case 580SK (5-08) - STEERING HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381 (05) - STEERING

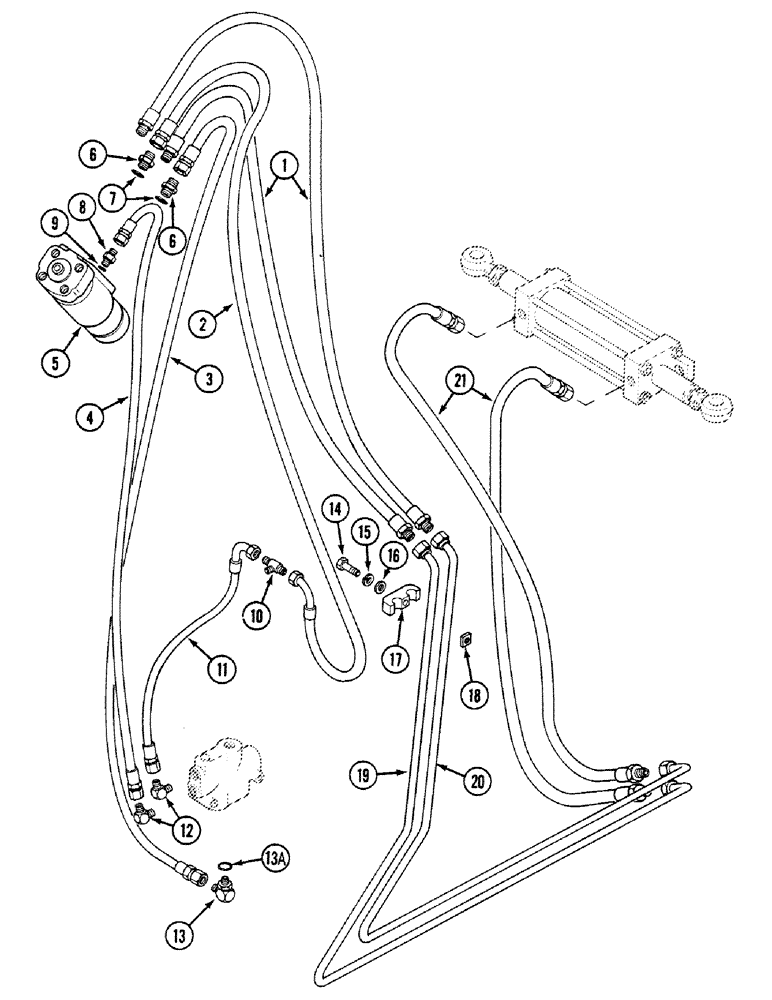

Схема запчастей Case 580SK - (5-08) - STEERING HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381 (05) - STEERING
5
2
17
13
8
12
14
4
10
20
9
16
15
3
11
6
21
6
13a
19
1
7
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D143188

HOSE ASSY.

2шт.

2

D149214

HOSE

Return

1шт.

3

E47393

HOSE

Pressure

1шт.

4

E47392

HOSE

Pilot

1шт.

5

D135338

PUMP, HYDRAULIC

VALVE ASSY See Figure : 5-14

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, with 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

11

E49554

HOSE

Return

1шт.

12

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 deg With : 13A

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 13A

1шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

15

492-11038

LOCK WASHER,3/8"

7шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

17

D120679

CLAMP,Tube, 1/2"

3шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

19

D146282

PIPE

Right

1шт.

20

D146280

PIPE

Left

1шт.

21

D124648

HOSE

2шт.
