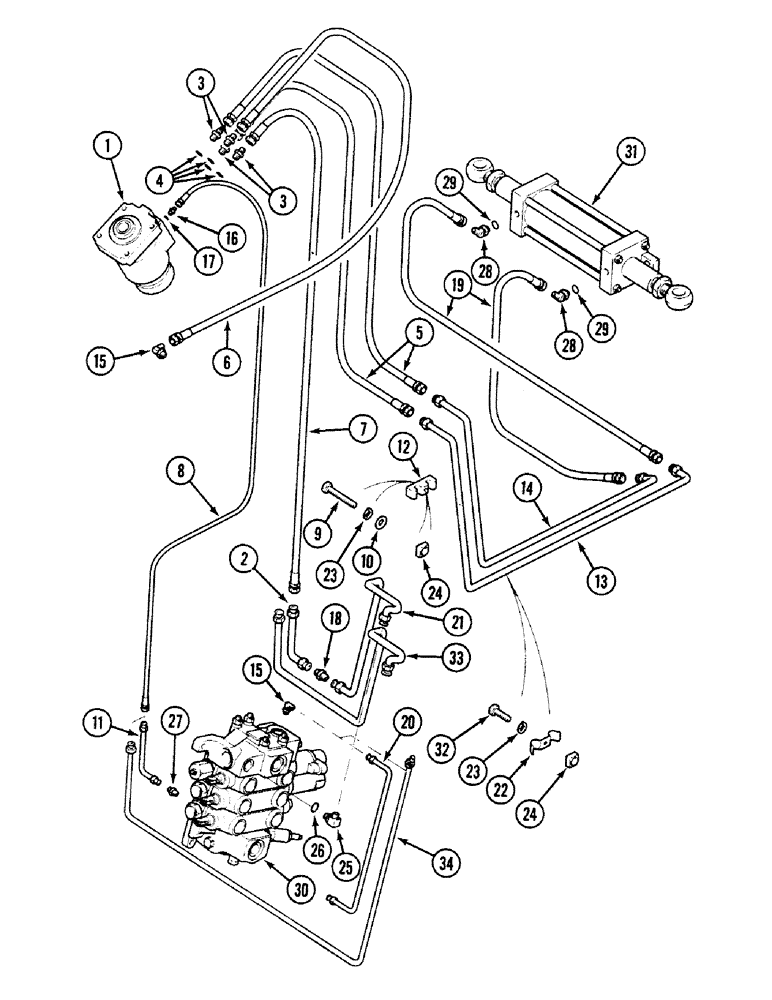

Запчасти Case 580SK (5-04) - STEERING HYDRAULIC CIRCUIT, NOT FOR PRESTIGE/SERVOPOWER (05) - STEERING

1

D135338

PUMP, HYDRAULIC

VALVE ASSY See Figure : 5-14

1шт.

2

D147588

PIPE

, Serial Range: -JJH0045508

1шт.

2

E55074

PIPE

, Serial Range: JJH0045509-JJH0047480

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

D143188

HOSE ASSY.

Steering

2шт.

6

D149214

HOSE

Return

1шт.

7

E49605

HOSE

1шт.

8

D146136

HOSE

Pilot

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

11

D147590

PIPE

, Serial Range: -JJH0045508

1шт.

11

E48671

PIPE

Pilot, Serial Range: JJH0045509-JJH0047480

1шт.

12

D120679

CLAMP,Tube, 1/2"

3шт.

13

D146282

PIPE

Right

1шт.

14

D146280

PIPE

Left

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

16

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, with 17

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR, Serial Range: -JJH0045508

1шт.

19

D124648

HOSE

2шт.

20

D147586

PIPE

Pilot, Serial Range: -JJH0045508

1шт.

21

E49785

PIPE

, Serial Range: -JJH0045508

1шт.

22

E49631

CLAMP

1шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

25

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR, Serial Range: -JJH0045508

1шт.

28

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2WD with 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

VALVE Control See Figure : 8-316

1шт.

31

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

2WD See Figure : 5-18

1шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

33

127977A1

PIPE

, Start Serial: JJH0047481

1шт.

34

127976A1

PIPE

, Start Serial: JJH0047481

1шт.
