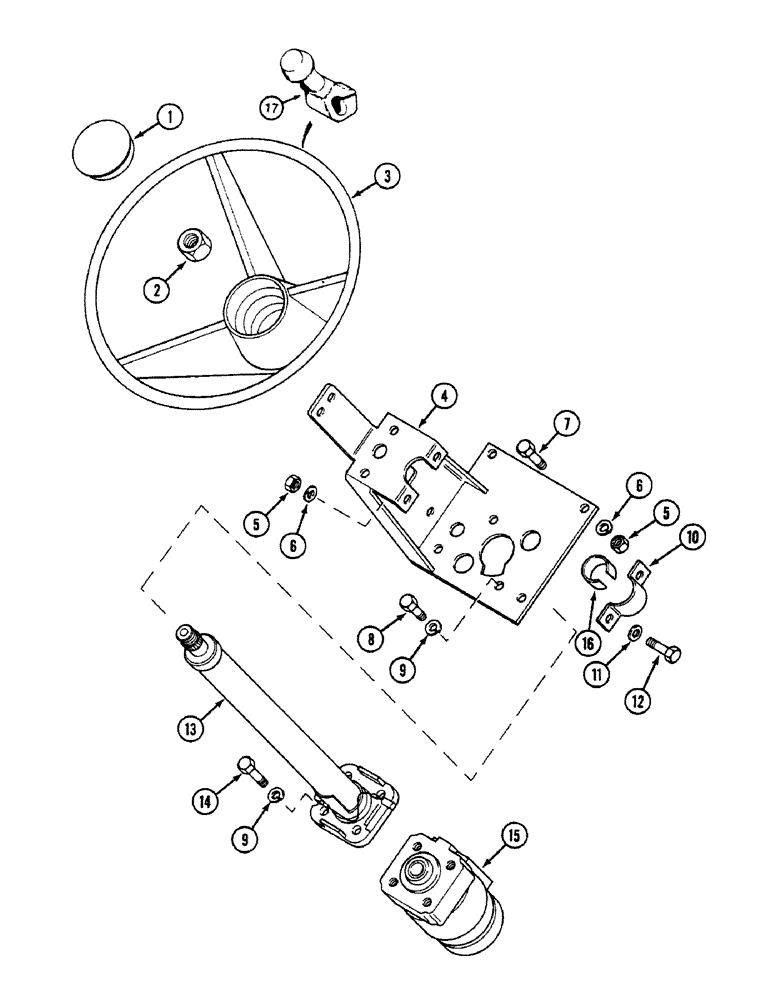

Запчасти Case 580SK (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

1

144294A1

PLUG

48 mm Use With : 144293A1

1шт.

1

E48347

COVER

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

1шт.

3

144293A1

WHEEL (STEERING)

300 mm

1шт.

4

D134527

BRACKET

Steering Column

1шт.

5

425-105

NUT,5/16"-18, G5

2шт.

6

492-11031

LOCK WASHER,5/16"

6шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

E46943

SHIN

BRACKET Steering Column

1шт.

11

495-11034

WASHER,5/16", SAE

2шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 32 mm

2шт.

13

D135411

STEERING COLUMN

See Figure : 5-12

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

15

D135338

PUMP, HYDRAULIC

VALVE ASSY, Serial Range: -JJH0046381

1шт.

15

113399A1

PUMP

VALVE ASSY, Start Serial: JJH0046382

1шт.

16

E48113

STRIP

WRAPPER

1шт.

17

E48348

KNOB

1шт.
