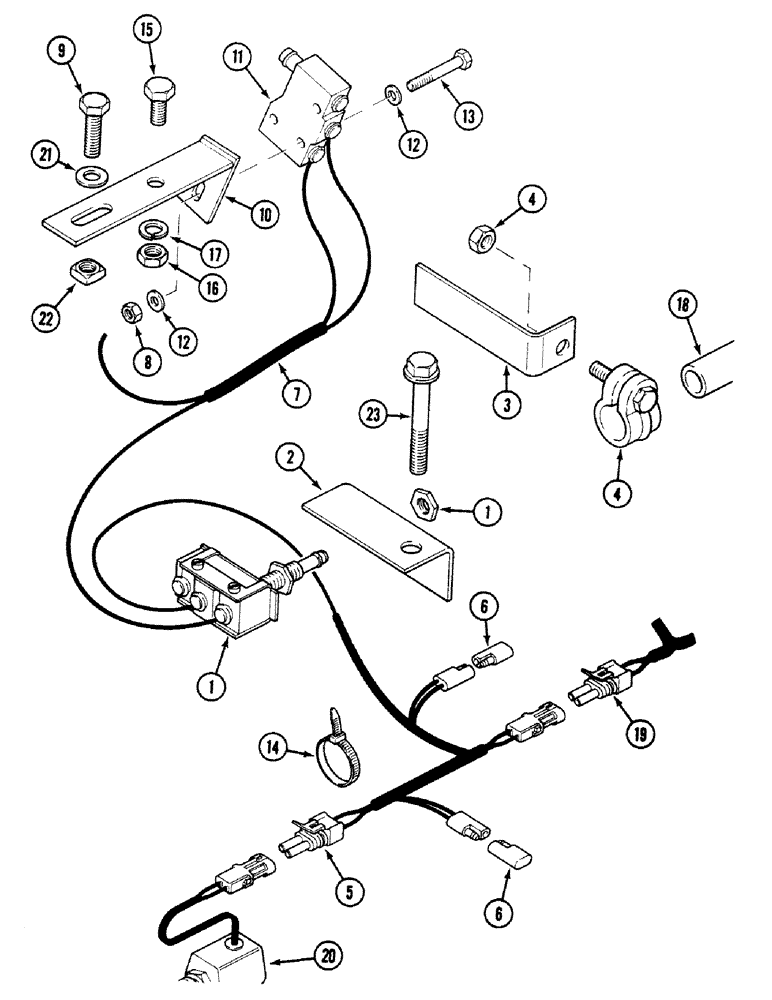

Запчасти Case 580SK (4-68) - FOURTH GEAR LOCKING (04) - ELECTRICAL SYSTEMS

1

E47755

SWITCH

MICROSWITCH

1шт.

2

E47270

SUPPORT ASSY.

1шт.

3

E47283

PLATE ASSY.

1шт.

4

D71880

CLAMP,22.23mm

1шт.

5

E47323

HARNESS

, Serial Range: -JJH0048433

1шт.

5

139016A1

HARNESS

, Serial Range: JJH0048426-JJH0048434

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

2шт.

7

E47200

HARNESS

, Serial Range: -JJH0048433

1шт.

7

139105A1

HARNESS

, Serial Range: JJH0048426-JJH0048434

1шт.

8

825-1403

NUT,M3, Cl 8

2шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

10

E47312

SUPPORT

1шт.

11

D134622

SWITCH

Micro

1шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

2шт.

13

983-3035

SCREW,M3 x 35mm

M3 x 35 mm

2шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

492-11031

LOCK WASHER,5/16"

1шт.

18

D136701

ROD

See Figure : 6-22

1шт.

19

D148410

HARNESS

, Serial Range: -JJH0048433

1шт.

19

139014A1

HARNESS

See Figure : 4-02, Serial Range: JJH0048426-JJH0048434

1шт.

20

1971438C3

SOLENOID

VALVE ASSY See Figure : 6-18

1шт.

21

492-11031

LOCK WASHER,5/16"

1шт.

22

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

23

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.
