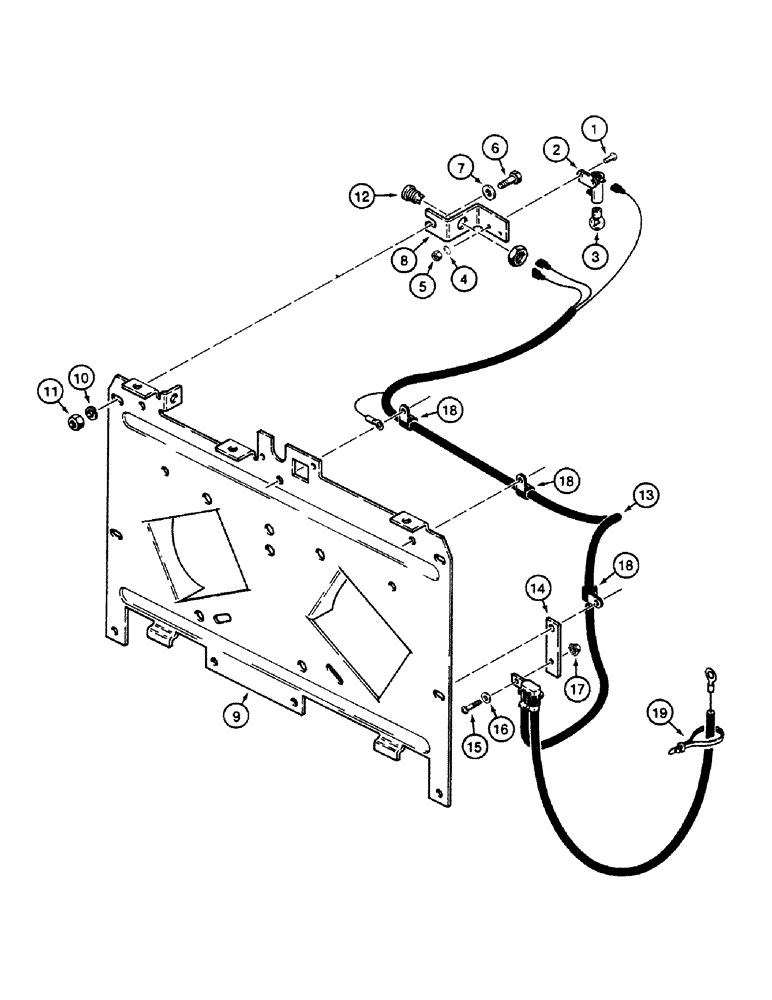

Запчасти Case 580SK (4-66) - ENGINE COMPARTMENT LAMP AND PORTABLE LAMP OUTLET (04) - ELECTRICAL SYSTEMS

1

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

No. 6 x 14 mm

2шт.

2

E43517

INTERIOR LIGHT

SOCKET

1шт.

3

E43518

BULB

12V

1шт.

4

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

2шт.

5

225-14106

NUT,#6-32

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

8

E46924

ANGLE

BRACKET Mounting

1шт.

9

D140712

SUPPORT

Air Cleaner

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

E40628

OUTLET

PLUG

1шт.

13

E46927

HARNESS

1шт.

14

E45443

BRACKET

PLATE

1шт.

15

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

No. 6 x 14 mm

1шт.

16

195-513

WASHER,#10

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

18

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

3шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
