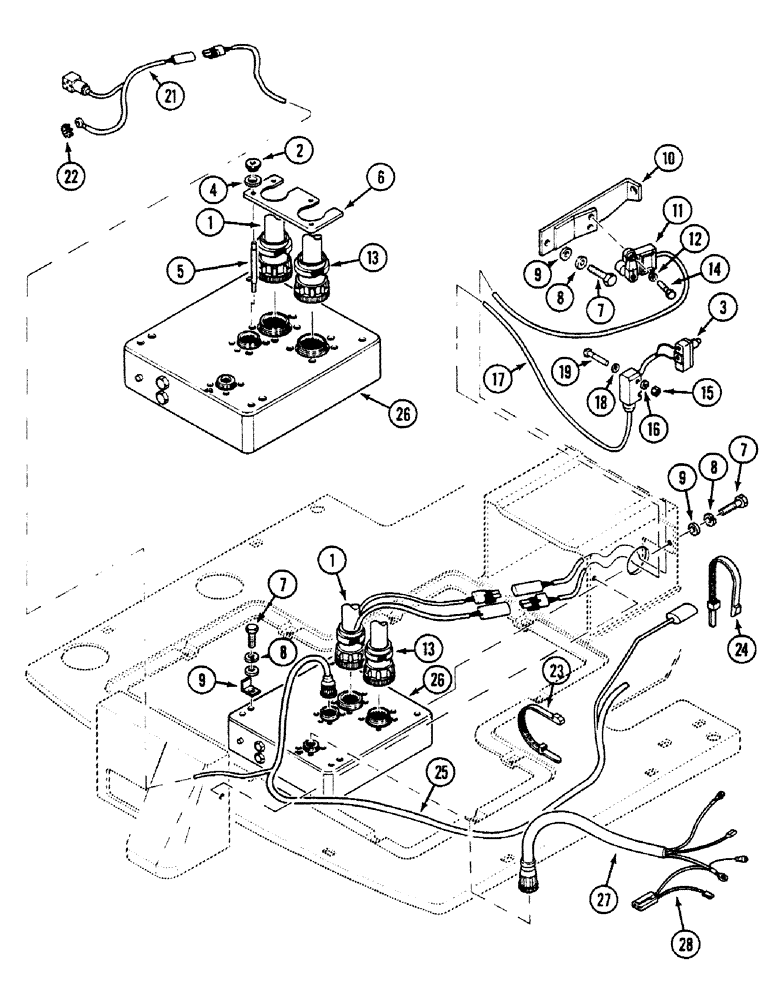

Запчасти Case 580SK (4-60) - ELECTRICAL SYSTEM, PRESTIGE/SERVOPOWER (04) - ELECTRICAL SYSTEMS

1

E49603

HARNESS

, Serial Range: -JJH0015931

1шт.

1

110323A1

HARNESS

, Serial Range: JJH0015932-JJH0046381

1шт.

1

114577A1

HARNESS

, Start Serial: JJH0046382

1шт.

2

E49668

BUTTON

4шт.

3

D148108

SWITCH

Micro

1шт.

4

892-11004

LOCK WASHER,M4

4шт.

5

E49669

POST

STUD

4шт.

6

E49671

LARGE PLATE

PLATE, LARGE

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

8

892-11006

LOCK WASHER,M6

6шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

10

E49663

SUPPORT

BRACKET

1шт.

11

E49670

SWITCH

SWITCH

1шт.

12

892-11005

LOCK WASHER,M5

2шт.

13

E47846

HARNESS

, Serial Range: -JJH0046381

1шт.

13

113904A1

HARNESS

, Start Serial: JJH0046382

1шт.

14

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

15

825-1403

NUT,M3, Cl 8

2шт.

16

892-11003

LOCK WASHER,M3

16 mm

2шт.

17

E49679

HARNESS

1шт.

18

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

19

864-3030

HEX SOC SCREW,M3 x 30mm, Cl 8.8

M3 x 30 mm

2шт.

21

E49521

HARNESS

, Serial Range: -JJH0016873

1шт.

21

E49991

HARNESS

, Serial Range: JJH0016874-JJH0046381

1шт.

22

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

24

D147773

CLAMP

STRAP

1шт.

25

E49731

HARNESS

, Serial Range: -JJH0046381

1шт.

25

113776A1

HARNESS

, Start Serial: JJH0046382

1шт.

26

E48422

ELECTRICAL CABINET

UNIT Control

1шт.

27

E47848

HARNESS

Power Supply, Serial Range: -JJH0014069

1шт.

27

E49837

HARNESS

, Start Serial: JJH0014070

1шт.

28

113393A1

HARNESS

1шт.
