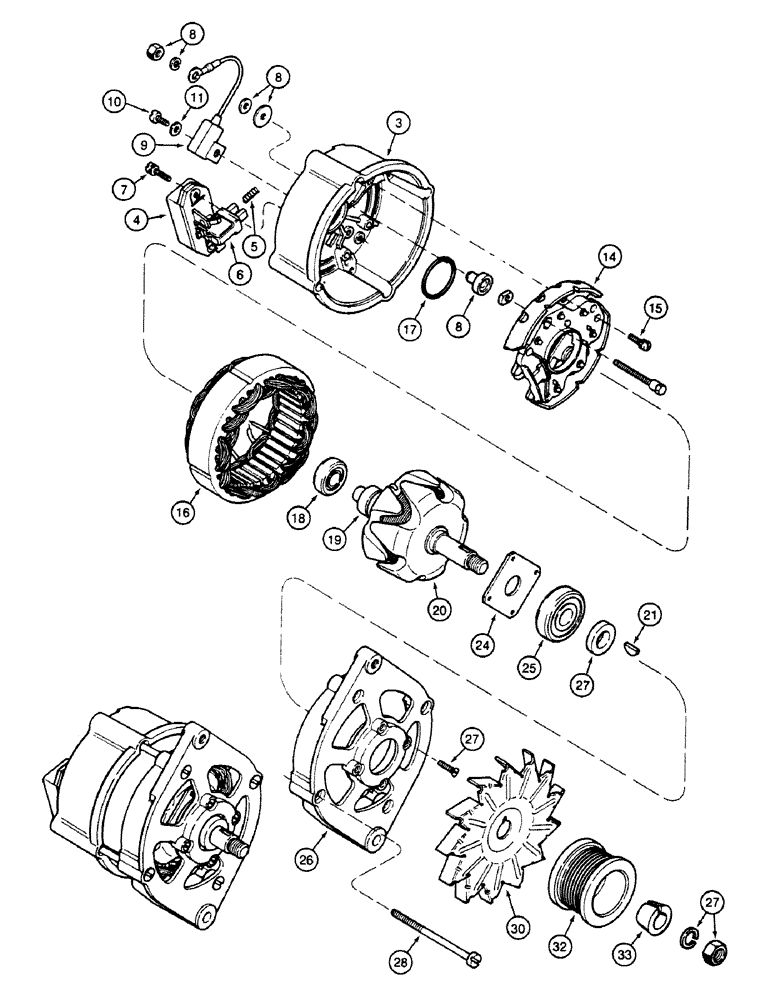

Запчасти Case 580SK (4-46) - ALTERNATOR, 65A (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

65A Consists of : 3 - 28

1шт.

3

A186187

HOUSING

1шт.

4

A186189

REGULATOR

With : 5,6

1шт.

5

SPRING

2шт.

6

BRUSH ASSY

1шт.

7

A186194

SCREW,M4 x 18mm

2шт.

8

3079135R1

TERMINAL CONNECTOR

1шт.

9

A186195

CAPACITOR

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

M5 x 10 mm

1шт.

11

A186196

WASHER

1шт.

14

A186197

RECTIFIER

1шт.

15

A186188

SCREW

ASSY

3шт.

16

A186192

STATOR

ASSY

1шт.

17

3079386R1

O-RING

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

19

A186185

RING

1шт.

20

A186184

ROTOR

ASSY

1шт.

21

KEY Order : 3078897R1

1шт.

24

3078379R1

COVER

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

26

A186182

HOUSING

1шт.

27

3078897R1

SET OF PARTS

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

30

221425R1

FAN

1шт.

A77414

KIT

PULLEY Consists of : 32,33

1шт.

32

PULLEY

1шт.

33

RETAINER

1шт.
