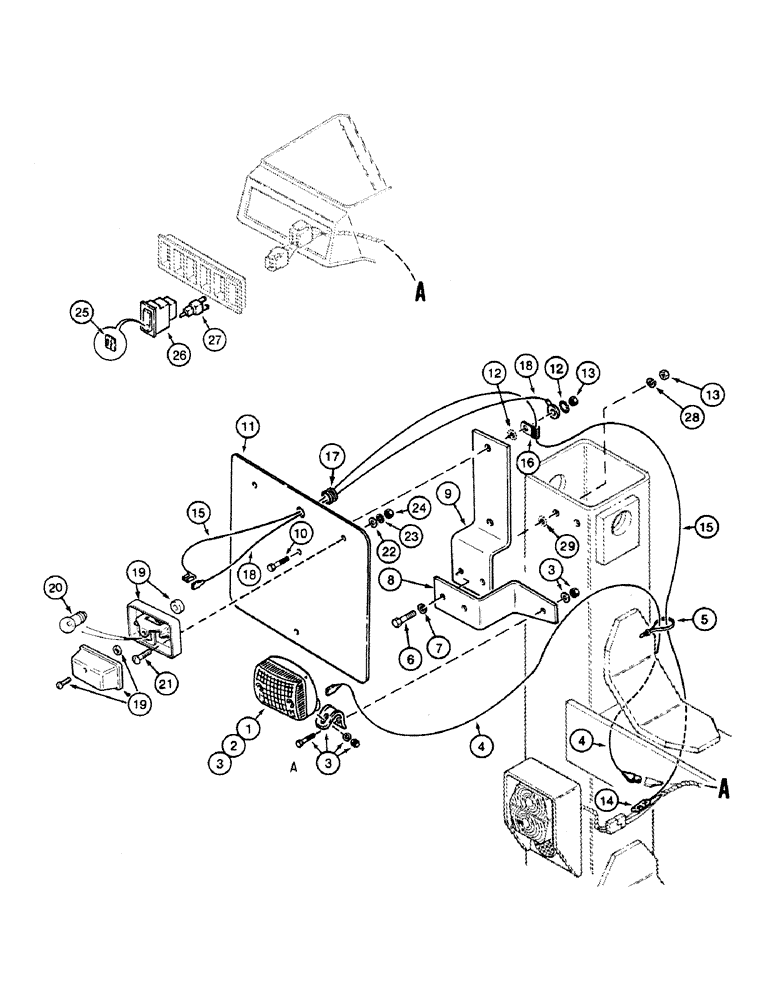

Запчасти Case 580SK (4-38) - REAR FOG LAMP WITH REAR NUMBER PLATE, SIDESHIFT BACKHOE (04) - ELECTRICAL SYSTEMS

E42098

LIGHT

ASSY Consists of : 1,2,3

1шт.

1

E42609

LAMP

LENS

1шт.

2

1094366R1

BULB

12V/21W

1шт.

3

LAMP

1шт.

4

E47785

ELECTRICAL WIRE

WIRE

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

6

E48423

SCREW,M8

BOLT 1/4 x 16 mm

2шт.

7

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

1/4"

2шт.

8

E48517

SUPPORT

1шт.

9

E48516

SUPPORT

1шт.

10

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

11

E47849

PLATE

1шт.

12

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

13

425-104

NUT,1/4"-20, Cl 5

1шт.

14

E35328

FITTING

CONNECTOR

1шт.

15

E47778

ELECTRICAL WIRE

WIRE

1шт.

16

A38799

CLAMP

1шт.

17

E10160

GROMMET

1шт.

18

E47855

ELECTRICAL WIRE

WIRE Earth

1шт.

E47853

LIGHT

ASSY Consists of : 19,20

1шт.

19

LAMP

1шт.

20

E43518

BULB

12V/10W

2шт.

21

E47856

SCREW

M4 x 16 mm

2шт.

22

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1/4"

2шт.

23

892-11004

LOCK WASHER,M4

4шт.

24

825-1404

NUT,M4, Cl 8

2шт.

25

E46775

SYMBOLS

SYMBOL DECAL

1шт.

26

3405831R1

TOGGLE SWITCH

Housing

1шт.

27

E47031

LIGHT SWITCH

LAMP 12V/12W

1шт.

28

492-11025

LOCK WASHER,1/4"

1шт.

29

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.
