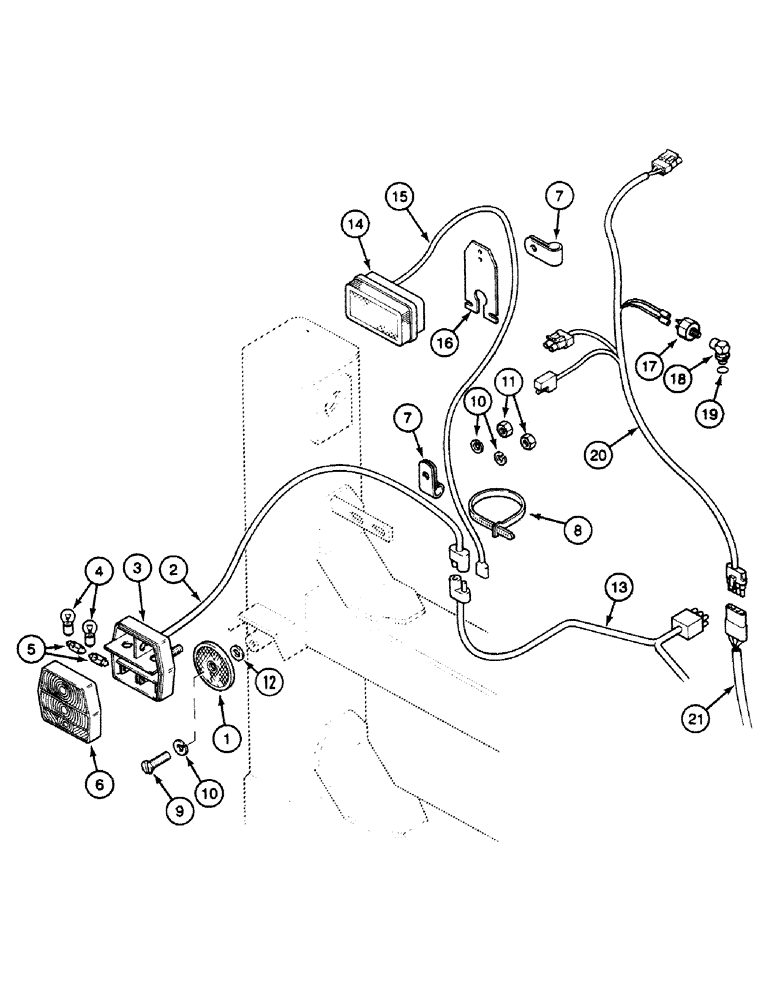

Запчасти Case 580SK (4-32) - REAR LAMPS, BRACKET MOUNTED (04) - ELECTRICAL SYSTEMS

1

E46570

REFLECTOR

2шт.

E46802

LIGHT ASSY.,12V

With : 2 - 6

2шт.

2

HARNESS

1шт.

3

HOUSING

1шт.

4

1094366R1

BULB

12V/21W

2шт.

5

710196R1

BULB,C5W, 12V, 5W

2шт.

6

E47547

LENS

1шт.

7

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

CLIP 1/4 ID

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

9

459-11012

SCREW,Slotted Pan Hd, #10-32 x 3/4"

No. 10 x 19 mm

2шт.

10

492-11010

LOCK WASHER,#10

4шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

E47792

HARNESS

, Serial Range: -JJH0048433

1шт.

13

138767A1

HARNESS

, Serial Range: JJH0048426-JH0048434

1шт.

14

178579A1

LIGHT

1шт.

15

142747A1

ELECTRICAL WIRE

WIRE

1шт.

16

178480A1

SUPPORT

1шт.

17

D139904

SWITCH

Pressure Reverse

1шт.

18

D144477

FITTING

ELBOW With : 19

1шт.

20

139014A1

HARNESS

Transaxle

1шт.

21

138917A1

HARNESS

Main See Figure : 4-02

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
