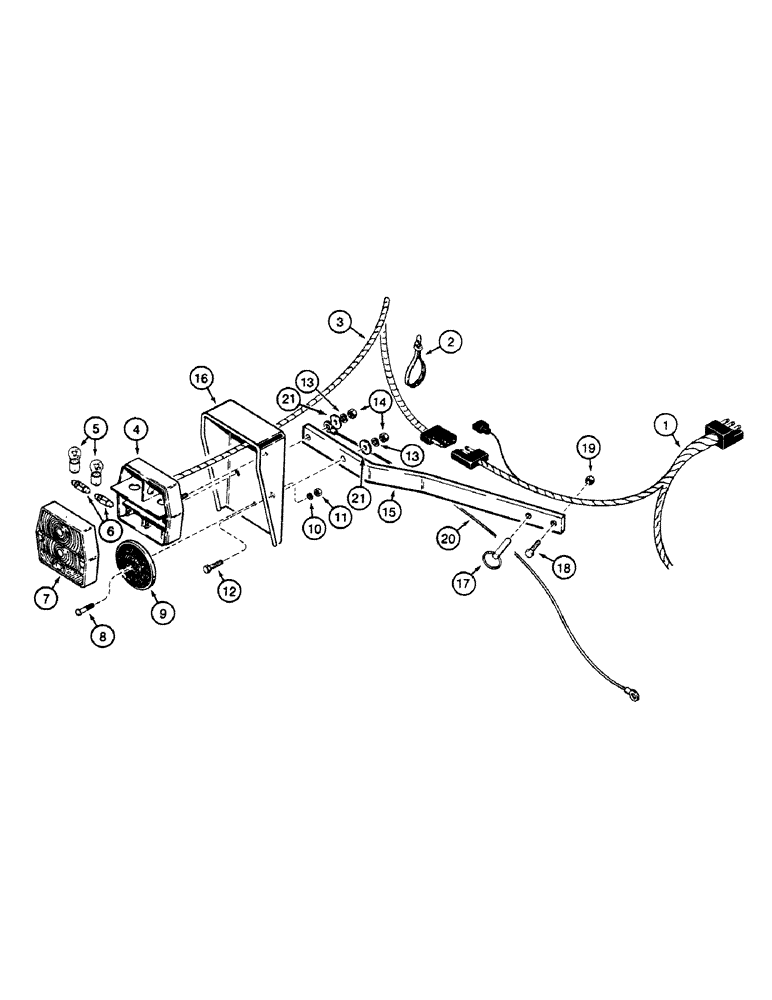

Запчасти Case 580SK (4-28) - REAR TRACTOR LAMPS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

E47792

HARNESS

, Serial Range: -JJH0048433

1шт.

1

138767A1

HARNESS

, Serial Range: JJH0048426-JJH0048434

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

8шт.

E46802

LIGHT ASSY.,12V

Consists of : 3 - 7

2шт.

3

HARNESS

1шт.

4

HOUSING

1шт.

5

1094366R1

BULB

12V/21W

2шт.

6

710196R1

BULB,C5W, 12V, 5W

2шт.

7

E47547

LENS

Saw

1шт.

7

E48665

LENS

Starlux

1шт.

7

E48664

LENS

Norep

1шт.

8

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

No.10 x 19 mm

2шт.

9

E46570

REFLECTOR

2шт.

10

492-11010

LOCK WASHER,#10

2шт.

11

225-14210

NUT,#10-32

2шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 32 mm

4шт.

13

492-11031

LOCK WASHER,5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

4шт.

15

E46761

ARM

SUPPORT

2шт.

16

E46789

PROTECTOR

GUARD

2шт.

17

D94535

PIN,9.52mm OD

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

231-4116

NUT,3/8"-16, GB

3/8"

2шт.

20

E46659

ELECTRICAL WIRE

WIRE Earth

2шт.

21

495-31025

WASHER,3/16"

3/16"

4шт.
