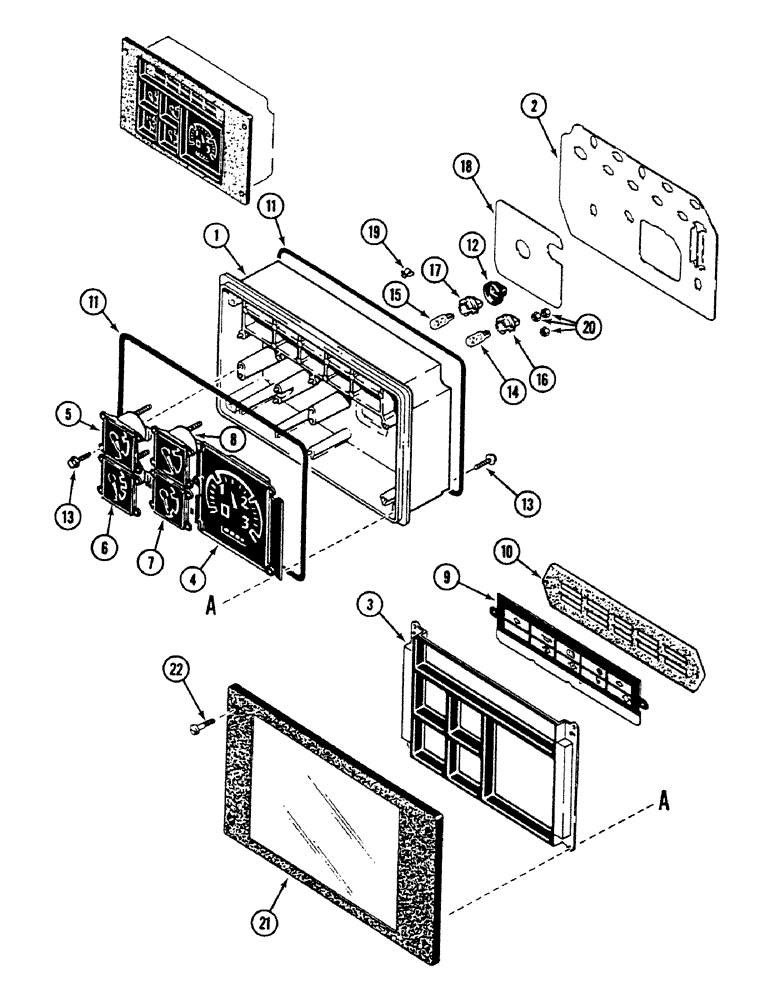

Запчасти Case 580SK (4-24) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

A187965

CLUSTER

Consists of : 1 - 21

1шт.

1

N13545

INSTRUMENT PANEL

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT

1шт.

3

N14227

COVER

1шт.

4

N13543

TACHOMETER

TACHOMETER

1шт.

5

N13542

GAUGE

Water Temperature

1шт.

6

A47688

ELECTRICAL GAUGE

Fuel

1шт.

7

N6807

ELECTRICAL GAUGE

Voltmeter

1шт.

8

N13546

GAUGE

Oil Temp. Use With : A187965

1шт.

8

N14226

GAUGE

Oil Temp. Use With : D136323

1шт.

9

N13538

BAND

LENS Warning Lamps

1шт.

10

D71342

GASKET,3.05mm Thk

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

2шт.

12

D71344

COVER

BOOT

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

12шт.

14

D71346

TAIL LAMP,12V

BULB No.168

6шт.

15

W10478

LAMP

BULB No.194

3шт.

16

A47123

SOCKET/RECEPTACLE

6шт.

17

A47125

PEDESTAL

SOCKET Green

3шт.

18

H422758

GASKET,1.52mm Thk

1шт.

19

H422766

CLIP, SPRING

11шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

1шт.

22

182-552

SCREW,Cross Pan Hd, #10-24 x 1/2"

No.10 x 13 mm

4шт.
