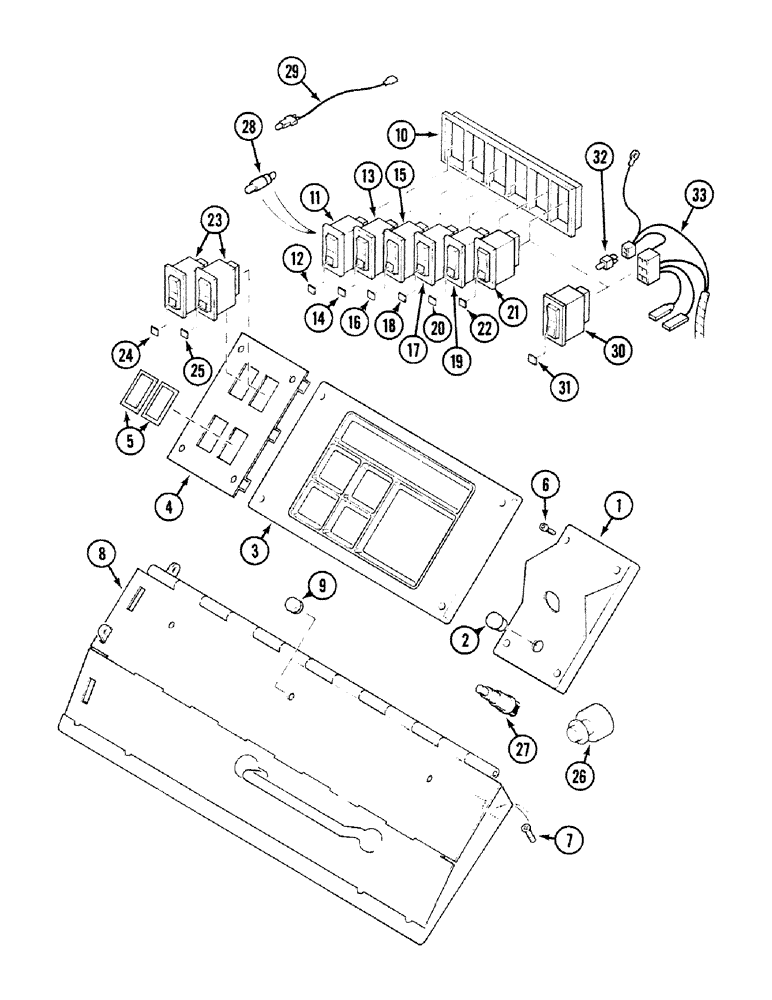

Запчасти Case 580SK (4-20) - SIDE INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

D135675

PLATE

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

16 mm

1шт.

3

A187965

CLUSTER

Side Console See Figure : 4-24

1шт.

4

E46766

SUPPORT

PLATE Front

1шт.

5

245918C1

LENS

PLUG blanking, rocker switch

2шт.

6

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

12шт.

7

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

8шт.

8

D149553

COVER

With : 9

1шт.

9

F22426

STOP

BUMPER

3шт.

10

E46632

SUPPORT

BRACKET

1шт.

11

245908C1

FLASHER SWITCH

1шт.

11

113999A1

LIGHT SWITCH

Hazard German With : 29

1шт.

12

245916C1

DECAL

SYMBOL DECAL

1шт.

13

E46760

TOGGLE SWITCH

Headlight

1шт.

14

245914C1

DECAL

SYMBOL DECAL

1шт.

15

83877C1

WINDSHIELD WASHER SW

Washer

1шт.

16

3231783R1

IDEOGRAM

DECAL

1шт.

17

3405831R1

TOGGLE SWITCH

Beacon

1шт.

18

E46776

SYMBOLS

SYMBOL DECAL

1шт.

19

3405831R1

TOGGLE SWITCH

Fog light

1шт.

20

E46775

SYMBOLS

SYMBOL DECAL

1шт.

21

E46760

TOGGLE SWITCH

Auxilliary Cab Heater

1шт.

22

3231774R1

SWITCH, CLIMATE CONT

SYMBOL

1шт.

23

3405831R1

TOGGLE SWITCH

HOUSING Worklight

2шт.

24

245912C1

LENS,GREEN

DECAL

1шт.

25

245913C1

DECAL

DECAL

1шт.

26

D134737

IGNITION SWITCH

SWITCH Ignition, Includes Set of Two A77313 metal keys without padding

1шт.

27

D90961

SWITCH

Thermostart

1шт.

28

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

29

E47266

BUSHING

HOLDER Germany

1шт.

30

3405831R1

TOGGLE SWITCH

HOUSING Sideshift Backhoe - Lock

1шт.

31

120794A1

SYMBOLS

SYMBOL DECAL

1шт.

32

E47031

LIGHT SWITCH

HOLDER

1шт.

33

119497A1

HARNESS

Sideshift Backhoe - Lock

1шт.
