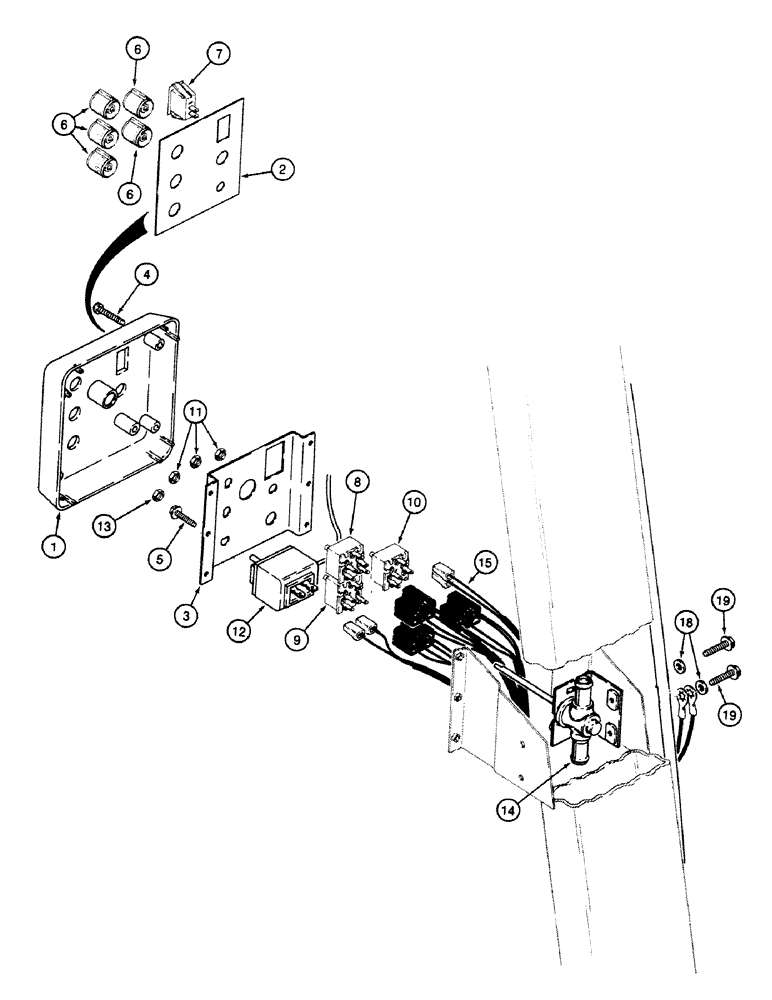

Запчасти Case 580SK (4-16) - CAB CONTROL PANEL (04) - ELECTRICAL SYSTEMS

1

135184A1

COVER

PANEL Grey

1шт.

1

1343898C1

COVER

PANEL Tan Control

1шт.

2

DECAL See Figure : 9-262

1шт.

3

R52436

BRACKET

1шт.

4

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Black

1шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

No. 10 x 19 mm

2шт.

6

111282C1

KNOB

KNOB Switch

5шт.

7

F45393

SWITCH

Cab Lamp

1шт.

8

A42622

SWITCH

Blower

1шт.

9

R52440

SWITCH

Wiper Rear

1шт.

10

R52415

ROTARY SWITCH

Wiper Front

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

3шт.

12

R52618

SWITCH

Air Conditioning

1шт.

13

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

14

R52483

VALVE

Heater

1шт.

15

HARNESS See Figure : 4-26

1шт.

18

495-21031

WASHER,1/4"

5/16"

2шт.

19

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.
