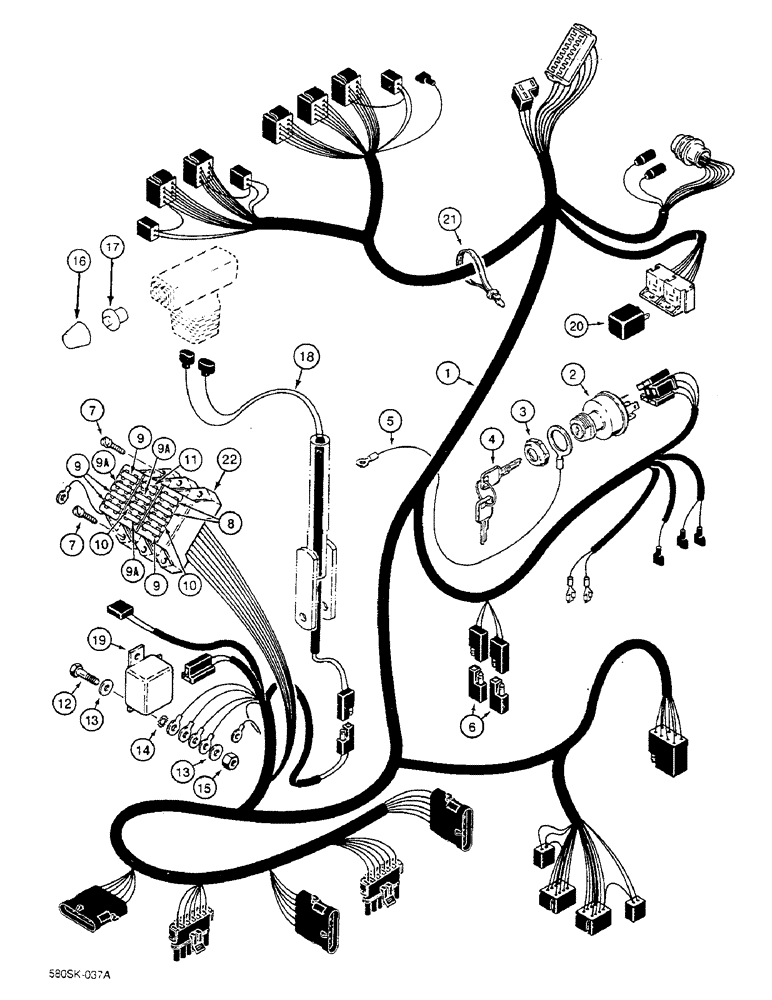

Запчасти Case 580SK (4-12) - SIDE CONSOLE HARNESS (04) - ELECTRICAL SYSTEMS

1

D148491

HARNESS

, Serial Range: -JJH0014069

1шт.

1

E49828

HARNESS

, Serial Range: JJH0014070-JJH0016926

1шт.

1

E49924

HARNESS

Use With : E49925, Serial Range: JJH0016927-JJH0046093

1шт.

1

114435A1

HARNESS

, Start Serial: JJH0046094

1шт.

1

E47191

HARNESS

Germany Only, Serial Range: -JJH0013119

1шт.

1

E49772

HARNESS

Germany Only, Serial Range: JJH0013120-JJH0016926

1шт.

1

E49930

HARNESS

Use With : E49925 Germany Only, Serial Range: JJH0016927-JJH0046093

1шт.

1

121121A1

HARNESS

Germany Only, Start Serial: JJH0046094

1шт.

D134737

IGNITION SWITCH

SWITCH With : 2 - 4

1шт.

2

SWITCH

1шт.

3

A77314

NUT

1шт.

4

A77313

SET OF 2 KEYS

metal without padding

1шт.

5

D135851

ELECTRICAL WIRE

WIRE CABLE Earth

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

2шт.

7

281-94512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

No.10 x 19 mm

6шт.

8

A149798

FUSE

5 A

2шт.

9

A149800

FUSE,10 Amp

10 A

4шт.

9a

A149801

FUSE,Lt Blue, 15 Amp

15 A

3шт.

10

A149802

FUSE

20 A

2шт.

11

A149803

FUSE,25 Amp

25 A

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

13

492-11025

LOCK WASHER,1/4"

2шт.

14

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

1/4"

1шт.

16

D138252

BOOT

1шт.

17

D141486

SWITCH

1шт.

18

D135858

HARNESS

Prestige Version

1шт.

18

D150166

HARNESS

Not For Prestige Shift Lever See Figure : 6-28

1шт.

19

L115882

RELAY

75A Serial No. : -, Serial Range: -JJH0014069

1шт.

19

E48811

RELAY

70A Serial No. : -, Start Serial: JJH0014070

1шт.

20

E46646

FLASHER UNIT,12V

SWITCH Hella

1шт.

21

D140236

STRAP

1шт.

22

131120A1

FUSE BOX

BLOCK

1шт.
