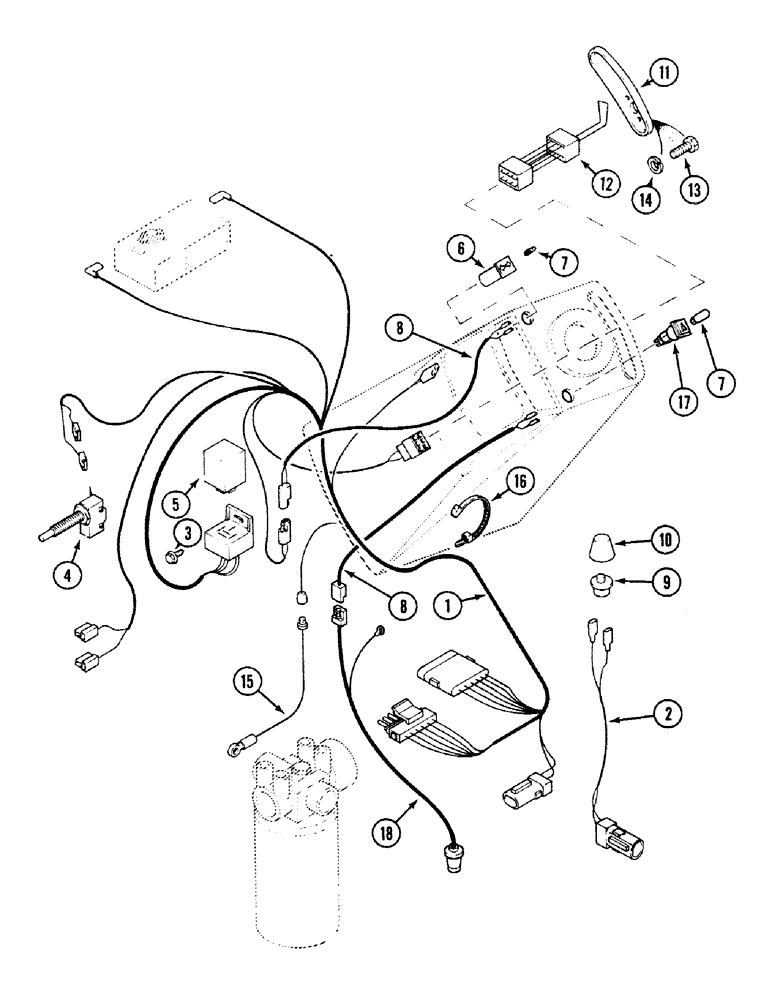

Запчасти Case 580SK (4-10) - FRONT CONSOLE WIRING HARNESS (04) - ELECTRICAL SYSTEMS

1

D148486

HARNESS

1шт.

1

E49775

HARNESS

, Serial Range: -JJH0046093

1шт.

1

129579A1

HARNESS

Front Console, Start Serial: JJH0046094

1шт.

2

D147050

HARNESS

Loader Lever

1шт.

3

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

No.10 x 10 mm

2шт.

4

D128886

SWITCH

Brake Light

1шт.

5

1983384C1

HARNESS

RELAY 30A Horn

1шт.

6

E47088

INDICATOR

SWITCH Turn

1шт.

7

E47100

BULB

12V/3W

2шт.

8

E47193

HARNESS

Turn

2шт.

9

D141486

SWITCH

Loader Lever

1шт.

10

D138252

BOOT

1шт.

11

E47509

SUPPORT

1шт.

12

E46938

FLASHER SWITCH

Turn

1шт.

13

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

14

892-11004

LOCK WASHER,M4

2шт.

15

E49758

CABLE

WIRE

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

17

E47280

SYMBOLS

SYMBOL INDICATOR Hazard Warning

1шт.

18

E47192

HARNESS

Hazard Warning

1шт.
