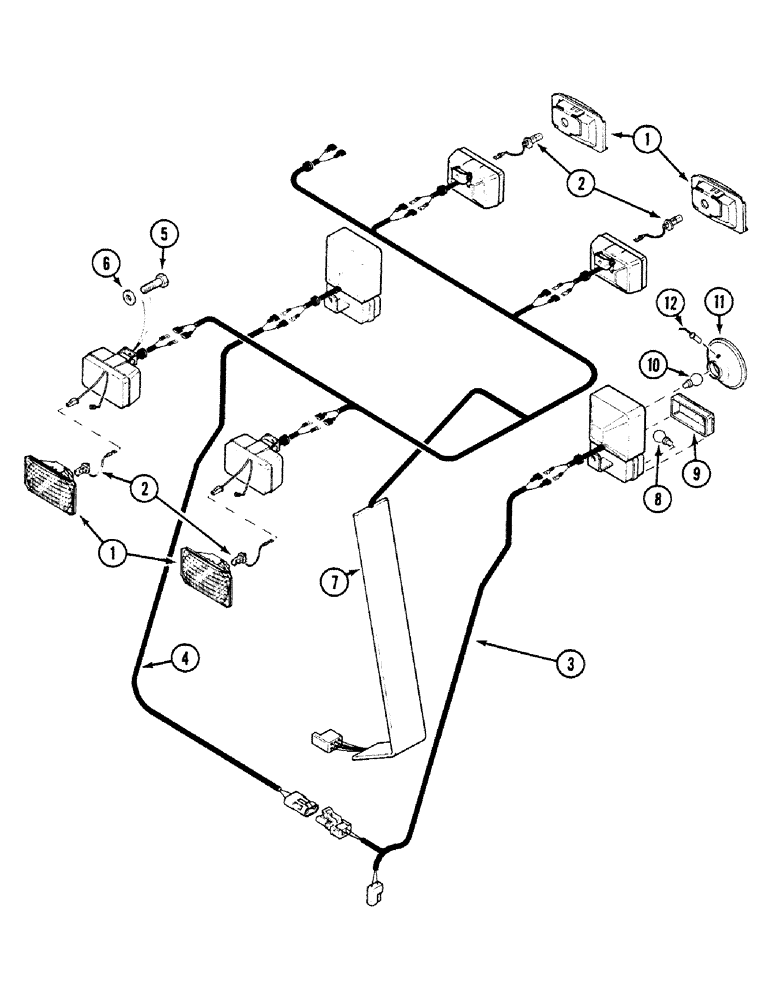

Запчасти Case 580SK (4-08) - TRACTOR LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

E46821

HEADLIGHT

ASSY Hella

4шт.

E55075

LAMP BASE

ASSY D.B.D. Front and Rear Consists of : 1,2

4шт.

1

E48668

LAMP BASE

LENS Hella

1шт.

1

E55075

LAMP BASE

LENS D.B.D.

1шт.

2

N7479

BULB

Front and Rear

1шт.

3

E47791

HARNESS

, Serial Range: -JJH0046093

1шт.

3

129576A1

HARNESS

Front, Right, Start Serial: JJH0046094

1шт.

4

E46506

HARNESS

Front, Left

1шт.

5

827-10016

SCREW,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

M10 x 16 mm

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

E48403

HARNESS

1шт.

E46742

HEADLIGHT

ASSY Front, White Consists of : 8 - 12

4шт.

3076115R1

BULB,Halogen, 12V, 40W

12V/40-45W White

1шт.

8

1094366R1

BULB

12V/21W

1шт.

9

D146849

LENS

Amber

1шт.

E46744

HEADLIGHT

ASSY Front, White Consists of : 10,11,12

1шт.

10

3076115R1

BULB,Halogen, 12V, 40W

12V/45-40W White

1шт.

11

D146848

LAMP BASE

LENS Clear

1шт.

12

3050199R91

BULB,T4W, 12V, 4W

12V/4W

1шт.
