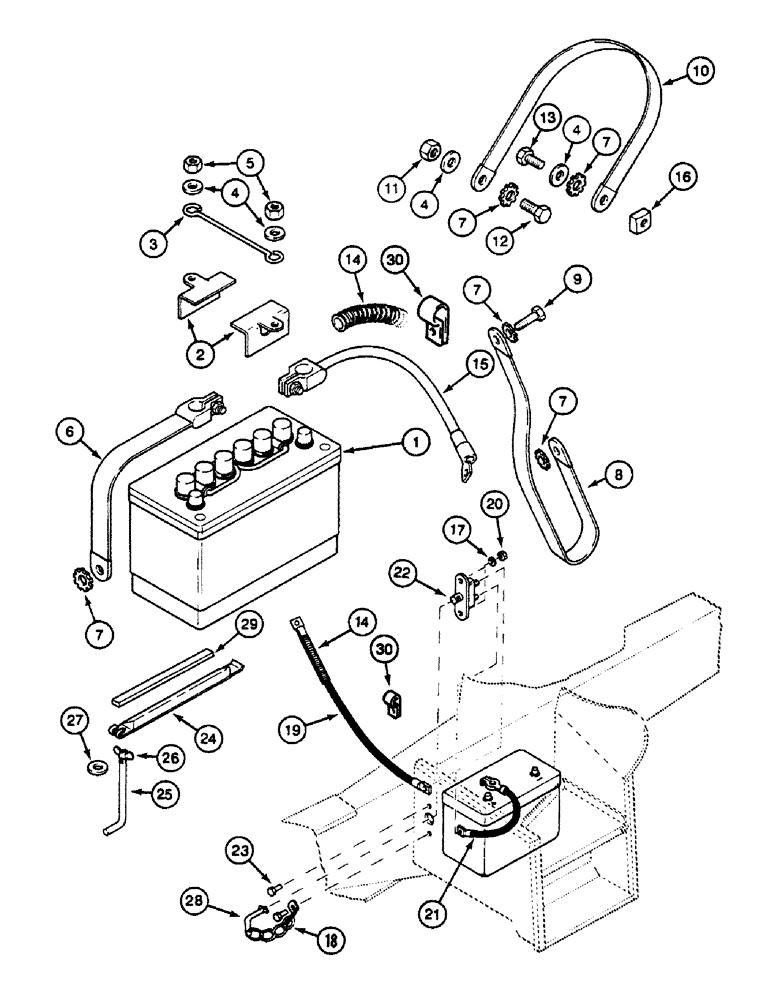

Запчасти Case 580SK (4-06) - BATTERY AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

E45628

BATTERY, DRY

BATTERY DRY 12V/128Ah Charge

1шт.

1

E55093

DRY BATTERY

12V/105Ah Wet Charged

1шт.

2

D125079

BRACKET

2шт.

3

D55561

RETAINER

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

231-4116

NUT,3/8"-16, GB

3/8"

2шт.

6

E48413

CABLE

STRAP

1шт.

7

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

8

D127018

STRAP

Earth

1шт.

9

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

3/8 x 25 mm

1шт.

10

D140369

GROUND STRAP,260mm L

STRAP Earth

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

14

D146865

LOOM

SLEEVE

1шт.

15

E49922

CABLE

Battery

1шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

17

492-11025

LOCK WASHER,1/4"

2шт.

18

E46978

CHAIN (CE)

1шт.

19

E49923

CABLE

1шт.

20

425-104

NUT,1/4"-20, Cl 5

2шт.

21

E46972

CABLE

1шт.

22

E46975

BATTERY CUT-OUT

SWITCH

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

E49800

SUPPORT

With : 29

1шт.

25

E49799

STEM

ROD With : 26,27

1шт.

26

112288A1

WING NUT

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

28

123794A1

KEY

1шт.

29

112290A1

FOAM

RUBBER

2шт.

30

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.
