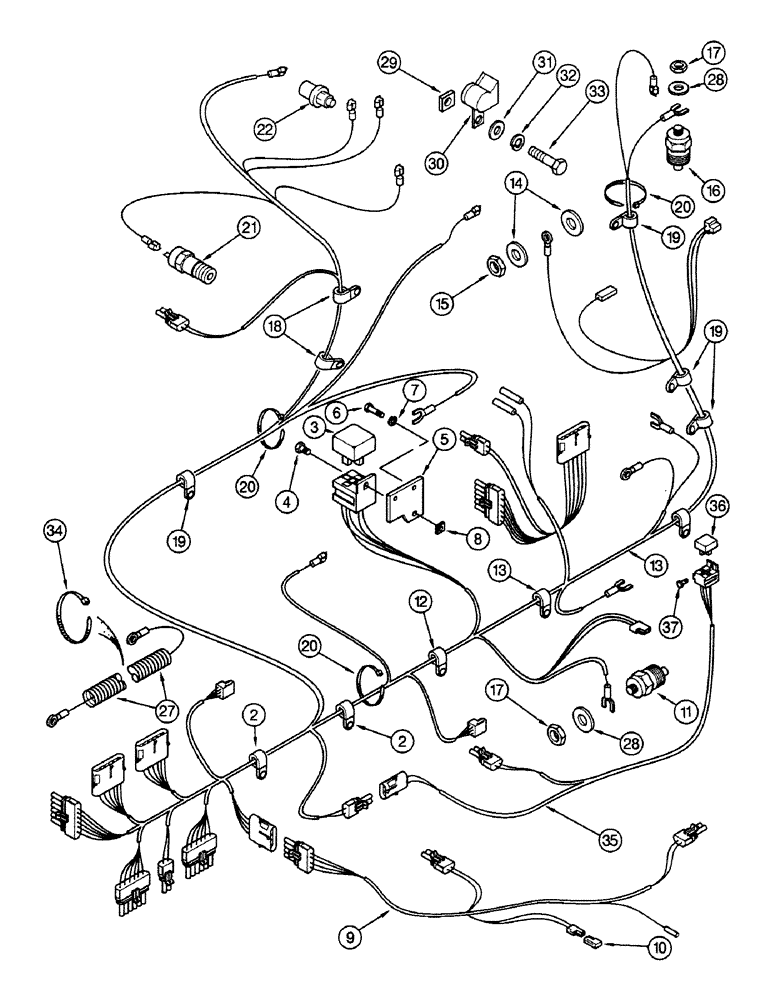

Запчасти Case 580SK (4-02) - ENGINE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D148422

HARNESS

, Serial Range: -JJH0046093

1шт.

1

118192A1

HARNESS

, Serial Range: JJH0046094-JJH0048433

1шт.

1

138917A1

HARNESS

Motor, Serial Range: JJH0048426-JJH0048434

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

P

2шт.

3

1983394C1

RELAY

30A Starter

1шт.

4

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

No.10 x 19 mm

1шт.

5

D149376

SUPPORT

PLATE, Serial Range: -JJH0046515

1шт.

5

124534A1

SUPPORT

PLATE, Start Serial: JJH0046516

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

3/8"

1шт.

9

D148410

HARNESS

, Serial Range: -JJH0048433

1шт.

9

139014A1

HARNESS

Transaxle, Serial Range: JJH0048426-JJH0048434

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER Transaxle temperature

1шт.

12

D47783

CLAMP

1шт.

13

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

14

493-21033

LOCK WASHER,Int Tooth, 5/16"

1/4"

2шт.

15

825-1406

NUT,M6, Cl 8

1шт.

16

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER Coolant Temp.

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

2шт.

18

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

19

49838

CLAMP

2шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

21

A162297

SWITCH

SENDER Oil Pressure

1шт.

22

E48614

INDICATOR

SENDER Air Filter Filling-Up Indicator

1шт.

27

D147514

HARNESS

CABLE, Serial Range: -JJH0014069

1шт.

27

E49829

ELECTRICAL WIRE

WIRE CABLE, Start Serial: JJH0014070

1шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

29

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

30

E47974

BUZZER

HORN

1шт.

31

492-11031

LOCK WASHER,5/16"

1шт.

32

495-21038

WASHER,5/16"

3/8"

1шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP trap

2шт.

35

113775A1

HARNESS

Clutch Cut Out Switch

1шт.

36

D128310

RELAY

Clutch Cut Out Switch

1шт.

37

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

1шт.
