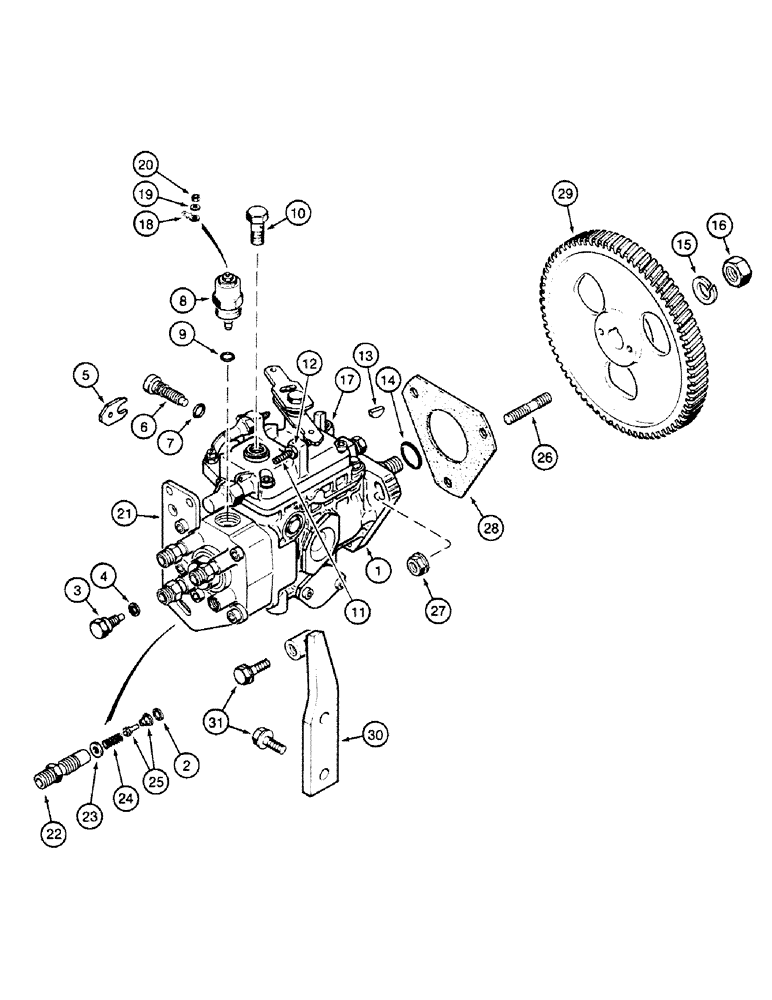

Запчасти Case 580SK (3-22) - FUEL INJECTION PUMP AND DRIVE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J917528

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY Consists of : 2 - 25

1шт.

1

JR917528

REMAN-INJECTION PUMP

1шт.

1

JC917528

CORE-INJECTION PUMP

Return Number

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

4шт.

3

3079483R1

SCREW

BOLT

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

1шт.

5

J904786

PLATE

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

BOLT

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

8

A77753

SOLENOID

1шт.

9

3078363R1

O-RING

1шт.

10

J905465

BANJO BOLT

BOLT

1шт.

11

3078343R1

BOLT

1шт.

12

J904783

NUT

1шт.

13

J902332

KEY

1шт.

14

J920393

SEAL

1шт.

15

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

16

J903738

NUT

14 mm

1шт.

17

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

18

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

19

J907481

WASHER

1шт.

20

J907480

NUT

1шт.

21

J905696

SUPPORT

BRACKET

1шт.

22

J910794

FITTING

4шт.

23

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

4шт.

24

J910796

SPRING

4шт.

25

J910795

BY-PASS VALVE

4шт.

26

J902501

STUD

STUD 8 x 48 mm

3шт.

27

J900589

NUT

8 mm

3шт.

28

J914389

GASKET

1шт.

29

J920594

PINION

GEAR Replaces : J912885

1шт.

30

J905313

LEVER

BRACE

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
