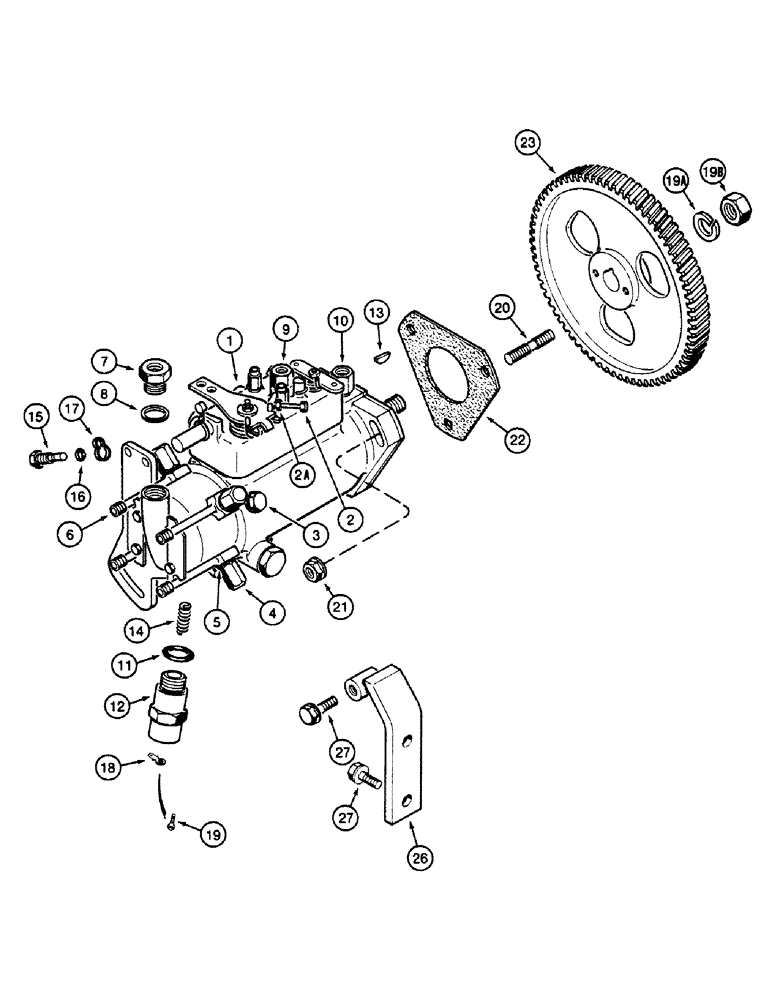

Запчасти Case 580SK (3-20) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J919974

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY With : 2 - 19B

1шт.

2

J904637

SET SCREW

BOLT Adjusting

1шт.

2a

131-1144

LOCK NUT,Jam, #10 - 24

1шт.

3

K963867

SCREW

BOLT ASSY

1шт.

4

J904646

BANJO BOLT

BANJO

4шт.

5

J904644

WASHER

9шт.

6

K962755

ADAPTER

FITTING

4шт.

7

J904641

FITTING

Inlet

1шт.

8

K962748

WASHER

Inlet

1шт.

9

J904640

VENT

ORIFICE

1шт.

10

J904643

FITTING

Return

1шт.

11

J904635

O-RING

1шт.

12

J904630

SOLENOID

12V

1шт.

13

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

14

J904777

SPRING

1шт.

15

J904778

BOLT

BOLT

1шт.

16

J904780

SEAL

1шт.

17

J904779

WASHER

1шт.

18

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

19

A77413

SCREW,Hex, M5 x 8mm

1шт.

19a

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

19b

A77444

JAM NUT

1шт.

20

J902501

STUD

STUD M8 x 48 mm

3шт.

21

J900589

NUT

M8

3шт.

22

J914389

GASKET

1шт.

23

J920594

PINION

GEAR

1шт.

26

J905387

BRACE

SUPPORT

1шт.

27

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
