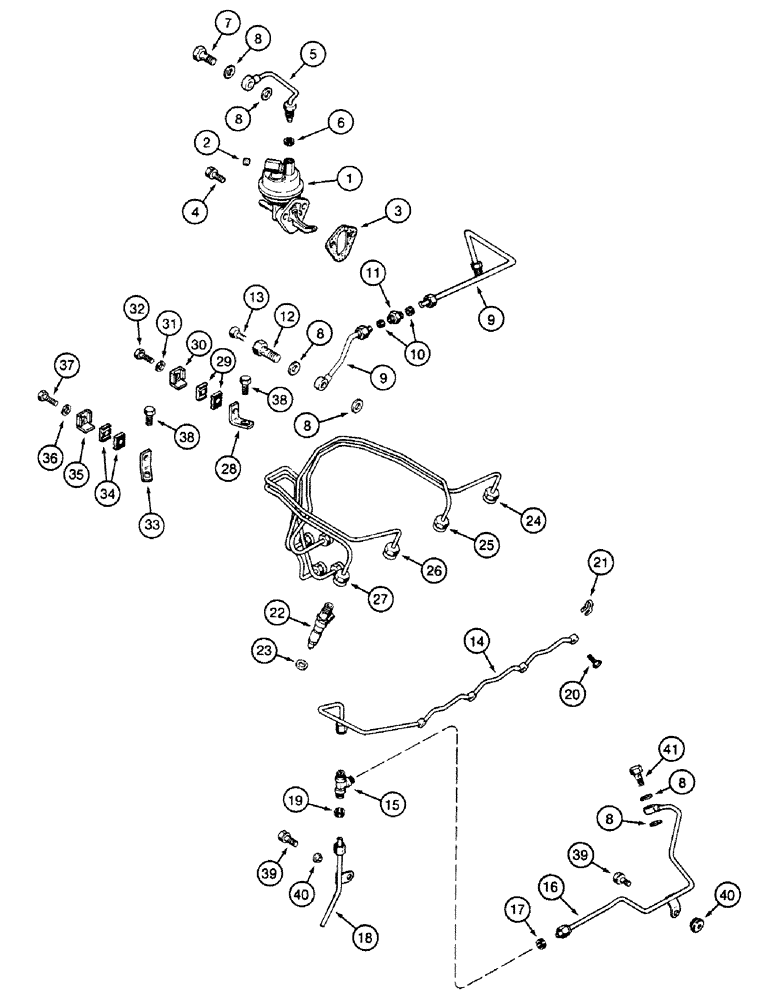

Запчасти Case 580SK (3-14) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSY 1/4"

1шт.

2

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

BOLT

1шт.

3

J914304

GASKET

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSY With : 6

1шт.

6

222-101

SLEEVE,3/16" Tube

SEAL 3/16"

1шт.

7

J903035

BANJO BOLT

M12 x 24

1шт.

8

J918191

PACKING RING

WASHER

4шт.

9

J918640

FUEL TUBE

Fuel Supply With : 10

1шт.

10

222-103

SLEEVE,5/16" Tube

1шт.

11

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR 5/16"

1шт.

J905860

BANJO BOLT

BOLT ASSY Consists of : 12,13

1шт.

12

BOLT Order : J905860

1шт.

13

BOLT Order : J905860

1шт.

14

J909695

FUEL TUBE

TUBE Fuel Return

1шт.

15

222-121

TEE,3/16", Flex Tubing

1шт.

16

J905699

FUEL TUBE,4.76 mm OD

ASSY Fuel Return With : 17

1шт.

17

222-101

SLEEVE,3/16" Tube

5/16"

1шт.

18

J905692

FUEL TUBE

ASSY Fuel Return With : 19

1шт.

19

222-101

SLEEVE,3/16" Tube

5/16"

1шт.

20

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

21

J903380

SEAL

4шт.

22

J919322

INJECTOR ASSY.

See Figure : 3-24

4шт.

23

J906659

SEAL

GASKET 7 mm injector tip

4шт.

24

J903480

FUEL TUBE,21 mm ID x 64 mm OD

ASSY Cylinder No. 1

1шт.

25

J903481

FUEL TUBE,21 mm ID x 64 mm OD

ASSY Cylinder No. 2

1шт.

26

J903482

FUEL TUBE,21 mm ID x 64 mm OD

ASSY Cylinder No. 3

1шт.

27

J903483

FUEL TUBE,21 mm ID x 64 mm OD

ASSY Cylinder No. 4

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSY Tube : 1,2 Consists of : 28 - 32

1шт.

28

J919294

SUPPORT

BRACKET

1шт.

29

J917746

CLAMP

ISOLATOR

2шт.

30

J904711

SUPPORT

PLATE

1шт.

31

J903723

WASHER

Use With : J917712

1шт.

32

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

32

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSY Tube : 3,4 Consists of : 33 - 37

1шт.

33

J919292

SUPPORT

BRACKET

1шт.

34

J917746

CLAMP

ISOLATOR

2шт.

35

CURJ904711

CLAMP

PLATE

1шт.

36

J903723

WASHER

Use With : J917712

1шт.

37

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

37

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

38

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

39

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

40

J900267

SEAL

2шт.

41

J905465

BANJO BOLT

BOLT

1шт.
