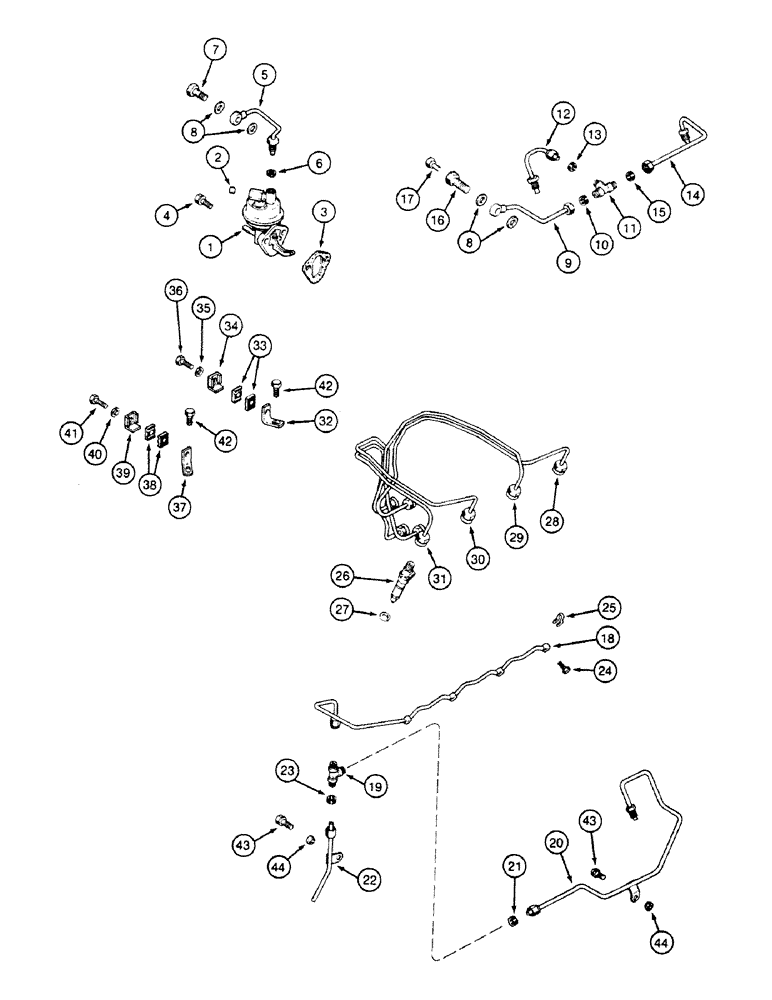

Запчасти Case 580SK (3-08) - FUEL INJECTION SYSTEM, 4-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSY

1шт.

2

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

1шт.

3

J914304

GASKET

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSY Pump to Filter With : 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 OD

1шт.

7

J903035

BANJO BOLT

M12 x 24

1шт.

8

J918191

PACKING RING

WASHER

4шт.

9

J905364

FUEL TUBE

Assy Fuel Supply With : 10

1шт.

10

222-103

SLEEVE,5/16" Tube

1шт.

11

222-123

TEE,5/16" Flex Tubing

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

Fuel Supply With : 13

1шт.

13

222-103

SLEEVE,5/16" Tube

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

Fuel Supply With : 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

BANJO Consists of : 16,17

1шт.

16

BOLT Order : J905860

1шт.

17

BOLT Order : J905860

1шт.

18

J909695

FUEL TUBE

TUBE ASSY Fuel Return

1шт.

19

222-121

TEE,3/16", Flex Tubing

1шт.

20

J905703

FUEL TUBE,4.76 mm OD x 661 mm L

Fuel Return With : 21

1шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

J905692

FUEL TUBE

ASSY Fuel Return With : 23

1шт.

23

222-101

SLEEVE,3/16" Tube

5/16"

1шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

25

J903380

SEAL

GASKET

4шт.

26

J920334

INJECTOR ASSY.

See Figure : 3-24

4шт.

27

J906659

SEAL

GASKET 7 mm injector tip

4шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

ASSY Cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSY Cylinder

1шт.

30

J903524

FUEL TUBE

ASSY Cylinder

1шт.

31

J903525

FUEL TUBE

ASSY Cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSY Tube : 1,2 Consists of : 32 - 36

1шт.

32

J919294

SUPPORT

BRACKET

1шт.

33

J917746

CLAMP

PLATE

2шт.

34

CURJ904711

CLAMP

CLAMP

1шт.

35

J903723

WASHER

Use With : J917712

1шт.

36

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

36

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSY Tube : 3,4 Consists of : 37 - 41

1шт.

37

J919292

SUPPORT

BRACKET

1шт.

38

J917746

CLAMP

ISOLATOR

2шт.

39

CURJ904711

CLAMP

PLATE

1шт.

40

J903723

WASHER

Use With : J917712

1шт.

41

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

41

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

42

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

43

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

44

J900267

SEAL

ASSY

2шт.
