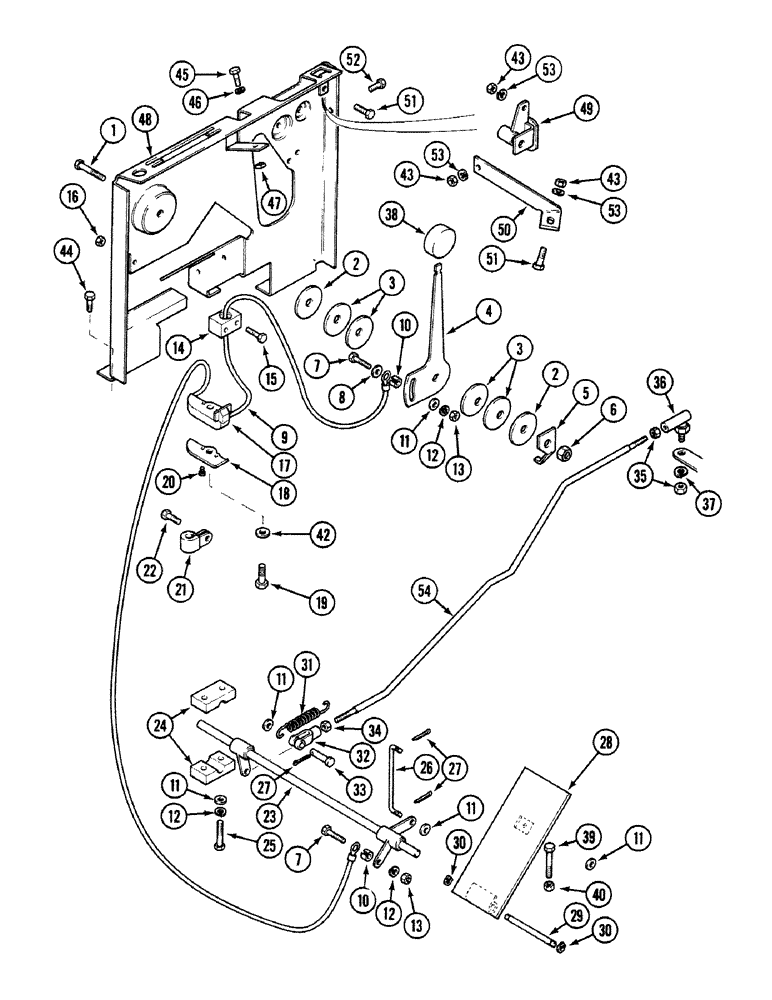

Запчасти Case 580SK (3-04) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

2

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

2шт.

3

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

Belleville

4шт.

4

D135409

LEVER

1шт.

5

D149136

HOLDER

PLATE

1шт.

6

231-1448

NUT,1/2"-13, GB

1шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 31 mm

2шт.

8

495-21038

WASHER,5/16"

2шт.

9

D150863

CABLE

1шт.

10

D124865

SPACER

2шт.

11

495-11034

WASHER,5/16", SAE

8шт.

12

492-11031

LOCK WASHER,5/16"

6шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

D148961

BLOCK

1шт.

15

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4 x 44 mm

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

D148966

GUIDE

1шт.

18

D149032

STOP LOCK

RETAINER

1шт.

19

276-24924

SELF-TAP SCREW,3/8" - 16 x 1 1/2"

BOLT 3/8 x 38 mm

1шт.

20

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

BOLT No 10 x 1/2"

2шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

22

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT 5/16 x 19 mm

2шт.

23

D150687

SHAFT

1шт.

24

D124857

CLAMP

BLOCK

4шт.

25

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

26

D143428

STEM

ROD

1шт.

27

432-612

COTTER PIN,3/32" x 3/4"

3шт.

28

D124863

PEDAL

1шт.

29

D143413

PIN,9.52mm OD x 106mm L

1шт.

30

D143414

CIRCLIP

2шт.

31

D93823

SPRING

1шт.

32

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

33

427-5112

CLEVIS PIN,5/16" x 1 1/8"

1шт.

34

425-115

NUT,5/16"-24, G5

1шт.

35

425-114

NUT,1/4"-28, G5

2шт.

36

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

37

429-11025

WASHER

1/4"

1шт.

38

A177435

BALL KNOB

1шт.

39

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

39

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 89 mm

1шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.

42

495-21044

WASHER,3/8"

1шт.

43

425-106

NUT,3/8"-16, Cl 5

2шт.

44

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

45

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

46

492-11031

LOCK WASHER,5/16"

1шт.

47

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

48

102963A1

SUPPORT

BRACKET

1шт.

49

129095A1

SUPPORT

BELLCRANK

1шт.

50

D142395

LARGE PLATE

PLATE, LARGE SUPPORT

1шт.

51

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

52

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

53

492-11038

LOCK WASHER,3/8"

2шт.

54

D141664

ROD

, Serial Range: -JJH0016104

1шт.

54

E49890

ROD

Without Turbo., Start Serial: JJH0016105

1шт.

54

D141646

ROD

With Turbo., Serial Range: -JJH0016104

1шт.

54

E49885

ROD

With Turbo., Start Serial: JJH0016105

1шт.
