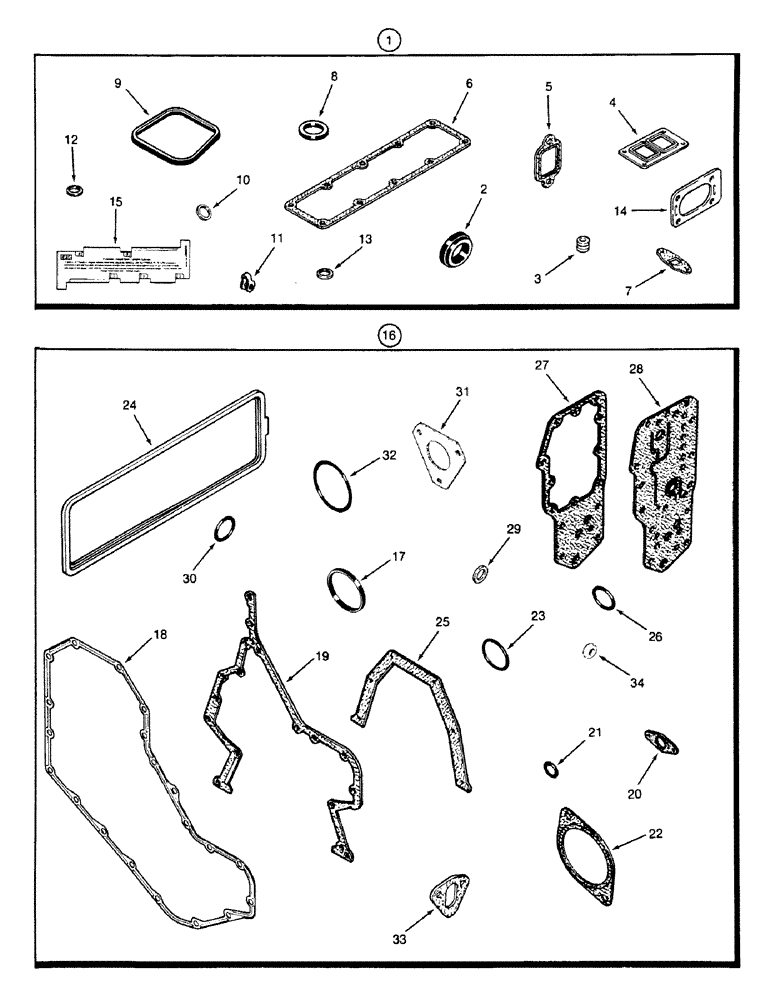

Запчасти Case 580SK (2-72) - ENGINE GASKET KITS (02) - ENGINE

1

A77672

GASKET KIT

Cylinder Head Consists of : 2 - 15

1шт.

2

J923331

GASKET

See Figure : 2-38

1шт.

3

J901097

SEAL

See Figure : 2-40

8шт.

4

J901356

GASKET,0.5mm Thk

See Figure : 2-30

1шт.

5

J905443

MANIFOLD GASKET

See Figure : 2-28

4шт.

6

J914028

GASKET

See Figure : 2-28

1шт.

7

J914388

GASKET

See Figure : 2-30

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill Cap

1шт.

9

J902666

GASKET

4шт.

10

J900808

SEAL

9 mm Injector

4шт.

11

J903380

SEAL

CLIP See Figure : 3-08, 3-14

4шт.

12

J906659

SEAL

GASKET See Figure : 3-14, 3-24

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

GASKET See Figure : 3-24

4шт.

14

J914856

GASKET,1.02mm Thk

1шт.

15

J823921

GAUGE

1шт.

16

A77671

GASKET KIT

Engine Block Consists of : 17 - 34

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

GASKET See Figure : 2-26

1шт.

18

J914385

GASKET,1.02mm Thk

See Figure : 2-26

1шт.

19

J916131

GASKET

See Figure : 2-26

1шт.

20

J905595

GASKET

See Figure : 2-26

1шт.

21

J913994

O-RING

See Figure : 2-26

1шт.

22

J919601

GASKET

See Figure : 2-26

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure 2-24

1шт.

24

J904056

GASKET

See Figure : 2-46, 2-52

1шт.

25

J914386

GASKET

See Figure : 2-58

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O RING See Figure : 2-46, 2-52

1шт.

27

J918256

GASKET

See Figure : 2-34

1шт.

28

J918257

GASKET

See Figure : 2-34

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEAL See Figure : 2-36

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O RING See Figure : 2-52

1шт.

31

J914389

GASKET

See Figure : 3-20, 3-22

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING GASKET 158 mm ID See Figure : 2-62

1шт.

33

J914304

GASKET

See Figure : 3-08, 3-14

1шт.

34

J900267

SEAL

4шт.
