Запчасти Case 580SK (2-68) - PISTONS AND CONNECTING RODS, 4T-390 ENGINE (02) - ENGINE

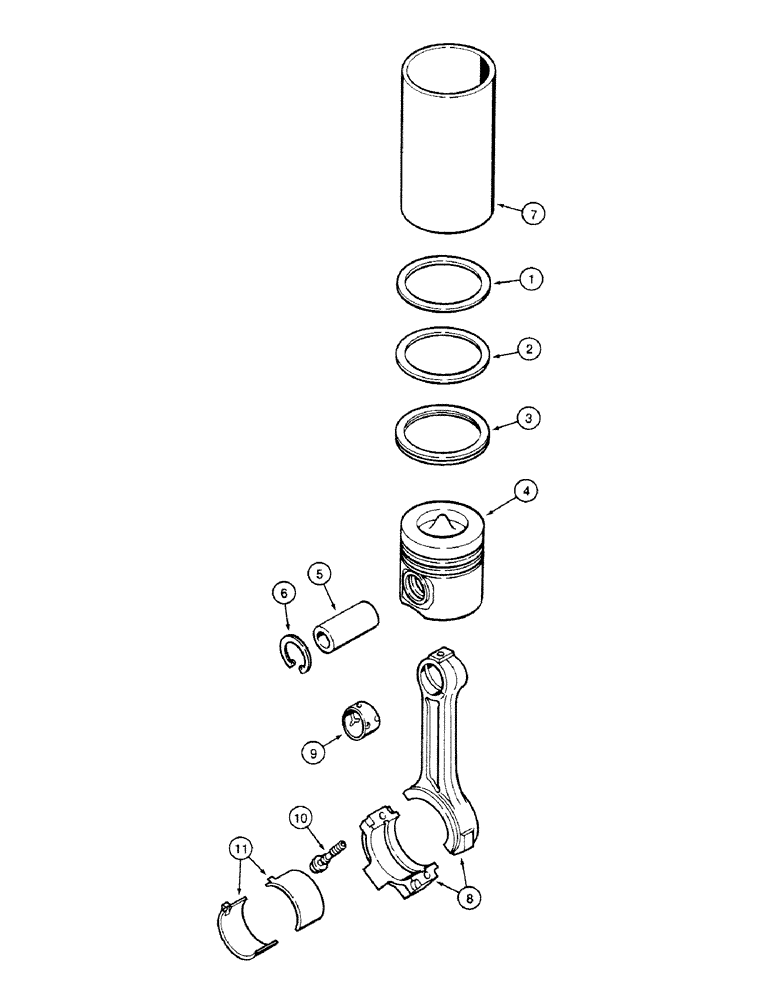

Схема запчастей Case 580SK - (2-68) - PISTONS AND CONNECTING RODS, 4T-390 ENGINE (02) - ENGINE
11
4
10
9
6
3
1
5
8
2
7

Артикул

Название

Примечание

Количество

A77730

PISTON,104MM PISTON DIAMETER

Standard Consists of : A77727, 1 - 6

4шт.

A77727

PISTON RING SET

KIT Standard With : 1,2,3

1шт.

1

RING Top

1шт.

2

RING Middle

1шт.

3

RING Bottom

1шт.

4

PISTON Standard

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

Retaining

2шт.

A77731

PISTON & RINGS KIT

Oversize : 0.5 mm Consists of : A77728, 1 - 6

1шт.

A77728

PISTON RING SET

KIT Oversize : 0.5 mm With : 1,2,3

4шт.

1

RING Top

1шт.

2

RING Middle

1шт.

3

RING Bottom

1шт.

4

PISTON Ring, Kit : 0.5 mm

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

Retaining

2шт.

A77732

PISTON

Oversize : 1.0 mm Consists of : A77729, 1 - 6

4шт.

A77729

PISTON RING SET

KIT Oversize : 1.0 mm With : 1,2,3

1шт.

1

RING Top

1шт.

2

RING Middle

1шт.

3

RING Bottom

1шт.

4

PISTON Oversize : 1.0 mm

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

Retaining

2шт.

7

J904166

SLEEVE

LINER

1шт.

J925232

ROD, CONNECTING

ASSY With : 8,9,10

4шт.

84145405R

REMAN-CONNECTING ROD

580SK, Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

ROD

1шт.

9

J901085

BUSHING

Order J925232

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT M11 x 59 mm

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

Undersize : 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize : 0.5 mm

4шт.

11

A77468

BEARING SET

Undersize : 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize : 1.0 mm

4шт.

Выбрано товаров: 36
