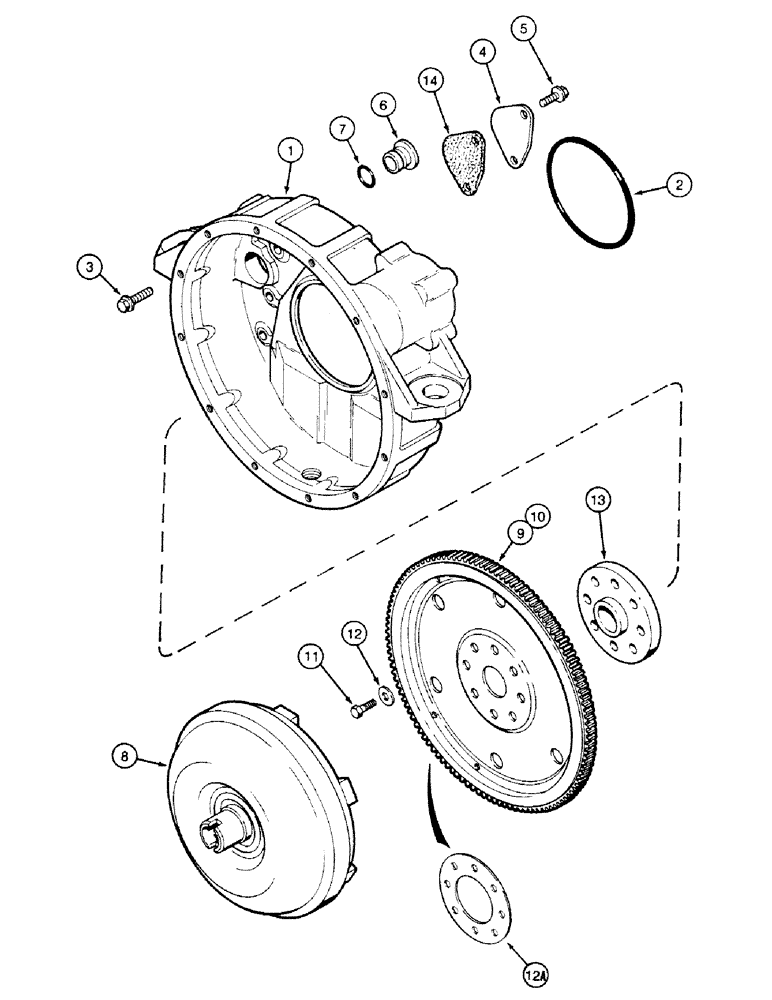

Запчасти Case 580SK (2-62) - FLEX PLATE AND HOUSING (02) - ENGINE

1

J903287

CASE

HOUSING

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING 158 mm ID

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J908095

PLATE

COVER

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

M8 x 21 mm

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

CONVERTER See Figure : 6-06

1шт.

9

J922595

FLYWHEEL

PLATE ASSY With : 10

1шт.

10

GEAR Teeth : 159

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

12a

J904361

WASHER

RING If So Equipped

1шт.

13

J913689

FLANGE

ADAPTER

1шт.

14

J908096

GASKET

1шт.
