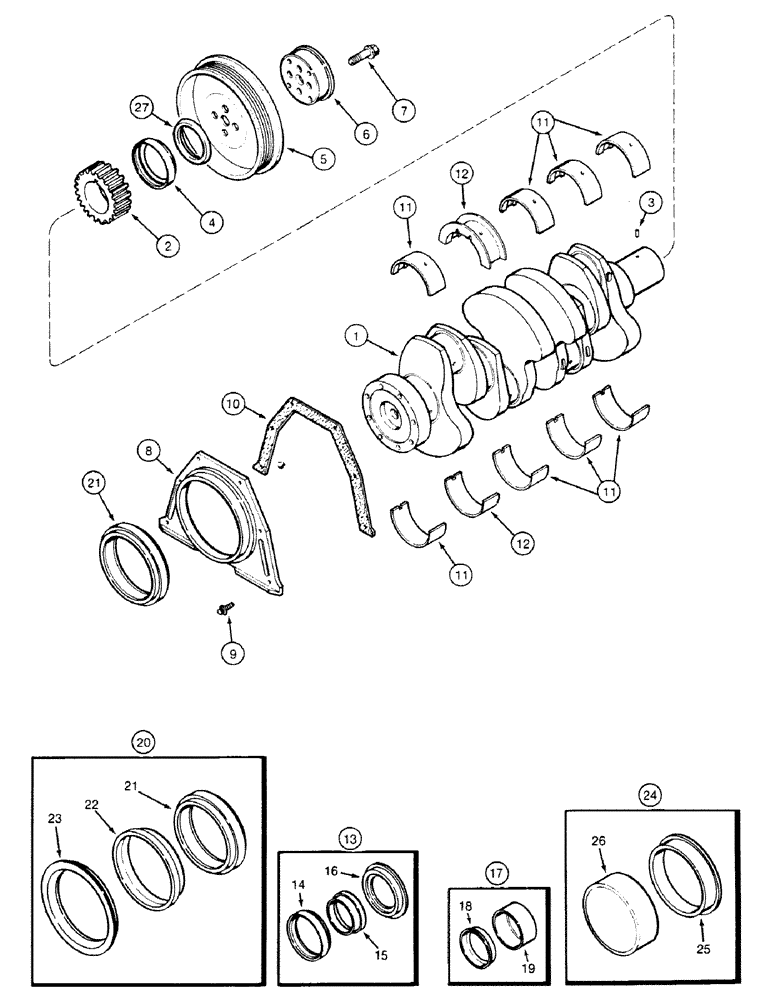

Запчасти Case 580SK (2-58) - CRANKSHAFT (02) - ENGINE

1

J918323

CRANKSHAFT

With : 2,3

1шт.

J929036R

REMAN-CRANKSHAFT

580SK, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

SEAL

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J905820

ADAPTER

CLAMP

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36 mm

4шт.

8

J913447

SEAL RETAINER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J914386

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

Undersize : 0.25 mm

1шт.

11

A77474

BEARING SET

Undersize : 0.50 mm

1шт.

11

A77476

BEARING SET

Undersize : 0.75 mm

1шт.

11

A77478

BEARING SET

Undersize : 1.00 mm

1шт.

12

A77406

CRANKSHAFT BEARING

Standard

1шт.

12

A77473

THRUST BEARING

Undersize : 0.25 mm

1шт.

12

A77475

THRUST BEARING

Undersize : 0.50 mm

1шт.

12

A77477

THRUST BEARING

Undersize : 0.75 mm

1шт.

12

A77479

THRUST BEARING

Undersize : 1.00 mm

1шт.

13

J904353

GASKET KIT

Seal Front Consists of : 14,15,16

1шт.

14

SEAL Front

1шт.

15

TOOL

1шт.

16

TOOL

1шт.

17

J906080

PACKAGE, REPAIR

KIT Crankshaft Front Consists of : 18,19

1шт.

18

SLEEVE

1шт.

19

TOOL

1шт.

20

J909411

SEAL

KIT Crankshaft Rear Consists of : 21,22,23

1шт.

21

SEAL Rear

1шт.

22

TOOL

1шт.

23

TOOL

1шт.

24

A77810

SERVICE KIT

Repair Crankshaft Rear Consists of : 25,26

1шт.

25

SLEEVE

1шт.

26

SEAL

1шт.

27

J926430

SHAFT SEAL

1шт.
