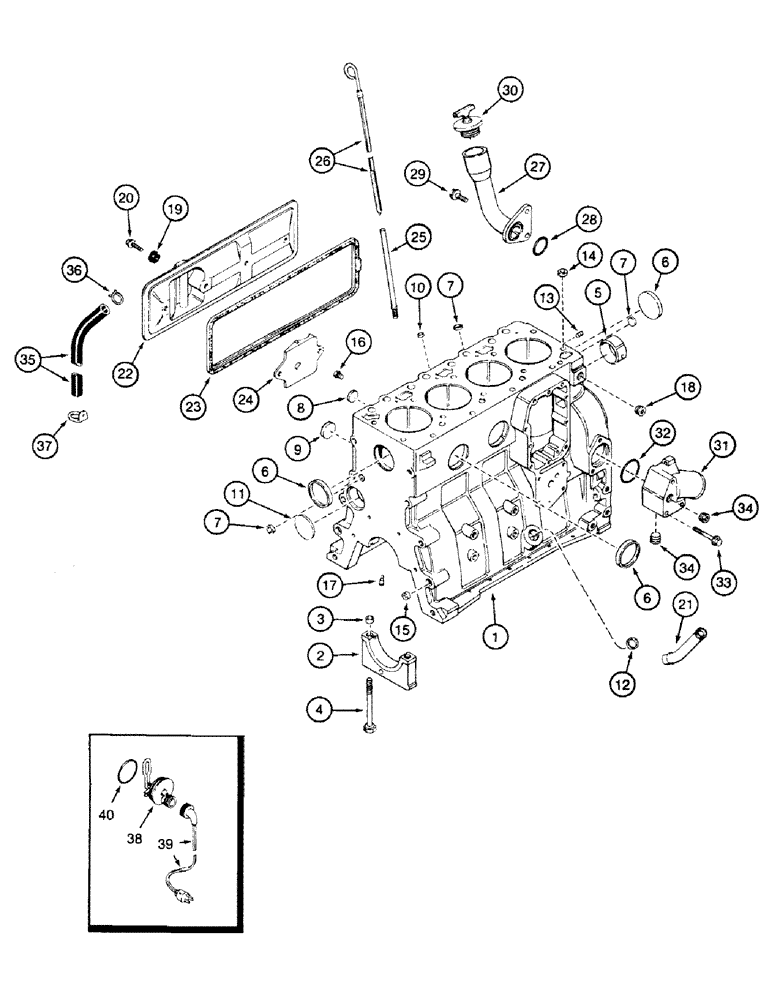

Запчасти Case 580SK (2-52) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

1989073C2

ENGINE ASSEMBLY

ENGINE ASSY Standard Complete Setvice Engine Without : Starter, Alternator, Fan, Belt, Air Cleaner, : Muffler and Exhaust Pipe

1шт.

1989092C2

BASIC ENGINE

Assy Service Engine Without : Starter, Alternator, Fan, Belt, Air Cleaner, Exhaust : Manifold, Flywheel Housing, Oil Filter and Dipstick, Fuel : Injection Pump, Injectors and Lines, Front Crank Pulley, : Belt Tensioner and Turbocharger

1шт.

A77759

SKELETON ENGINE

BLOCK ASSY Short With : Block, Pistons, Connecting Rods, Bearings, Crankshaft Order : J920399 Kit

1шт.

J916254

BLOCK ASSY.

Consists of : 1 - 8

1шт.

1

BLOCK

1шт.

2

J900967

BEARING CAP

CAP

5шт.

3

J900068

BEARING WASHER

RING 18 mm OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Special

10шт.

5

J901306

BUSHING

See Figure : 2-44

1шт.

6

A77782

PLUG

58 mm OD

4шт.

7

J900956

PLUG

18 mm OD

3шт.

8

23624R1

PLUG

26 mm OD

2шт.

PJ920399

SHIN

KIT Consists of : 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

J900687

PLUG

60 mm OD

1шт.

12

J920706

PLUG

22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16mm

2шт.

14

J902343

DOWEL

RING 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

1/8"

2шт.

17

J919002

NOZZLE CAP

4шт.

18

A77429

PLUG

1шт.

19

J900267

SEAL

Assy

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

Drain

1шт.

22

J916441

COVER

1шт.

23

J904056

GASKET

1шт.

24

J907586

BAFFLE

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

1шт.

26

J905781

DIPSTICK

GAUGE

1шт.

27

J905440

TUBE

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O RING

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

30

A77424

FILLER CAP

CAP

1шт.

31

J903102

CONNECTION

Inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O RING

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/4"

2шт.

35

J906593

HOSE

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J909670

CLIP

1шт.

A77634

KIT

Heater, 120V/750W Consists of : 38,39,40

1шт.

38

ELEMENT

1шт.

39

J905113

CABLE

1шт.

40

J910517

O-RING

1шт.
