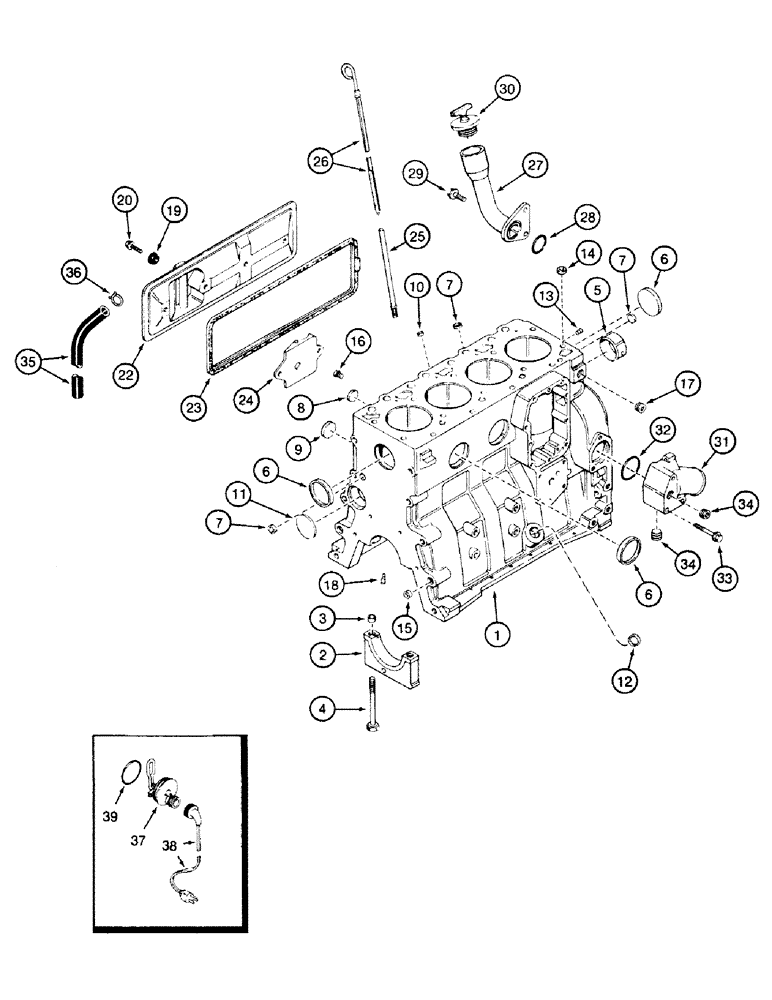

Запчасти Case 580SK (2-46) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1989063C1

ENGINE ASSEMBLY

ENGINE ASSY 4-390 Standard Complete Service Engine Less : Starter, Alternator, Fan, Belt, Air cleaner Muffler and Exhaust Pipe

1шт.

1989132C1

BASIC ENGINE

ASSY Basic Service Engine Less : Starter, Alternator, Fan, Belt, Support Air Cleaner, Exhaust, Manifold, Flywheel, Housing Oil fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Crank Pulley, Belt Tensioner

1шт.

A77776

SKELETON ENGINE

BLOCK ASSY Short Engine With : Block, Pistons, Conn. rods and Bearings, Crankshaft and Bearings

1шт.

A77757

CRANKCASE

BLOCK ASSY Consists Of : 1 - 18

1шт.

1

J916254

BLOCK ASSY.

With : 2 - 8

1шт.

2

J900967

BEARING CAP

CAP

5шт.

3

J900068

BEARING WASHER

RING 18 mm OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Bearing Cap

10шт.

5

J901306

BUSHING

Front See Figure : 2-44

1шт.

6

A77782

PLUG

58 mm OD

4шт.

7

J900956

PLUG

18 mm OD

3шт.

8

A77739

ELBOW

PLUG 26 mm OD

2шт.

J802641

PACKAGE, REPAIR

KIT Consists of : 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

J900687

PLUG

60 mm OD

1шт.

12

J920706

PLUG

22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16mm

2шт.

14

J902343

DOWEL

RING 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

1/8"

2шт.

17

A77429

PLUG

1/4"

1шт.

18

J919002

NOZZLE CAP

4шт.

19

J900267

SEAL

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

22

J916441

COVER

1шт.

23

J904056

GASKET

1шт.

24

J907586

BAFFLE

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

1шт.

26

J905781

DIPSTICK

1шт.

27

J905440

TUBE

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O RING

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

30

A77424

FILLER CAP

CAP

1шт.

31

J903102

CONNECTION

Inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O RING

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/4"

2шт.

35

J906593

HOSE

1шт.

36

J904230

CLAMP,25.4mm

1шт.

A77634

KIT

120V/750W Heater Consists of : 37 - 39

1шт.

37

ELEMENT Order : A77634

1шт.

38

J905113

CABLE

1шт.

39

J910517

O-RING

1шт.
