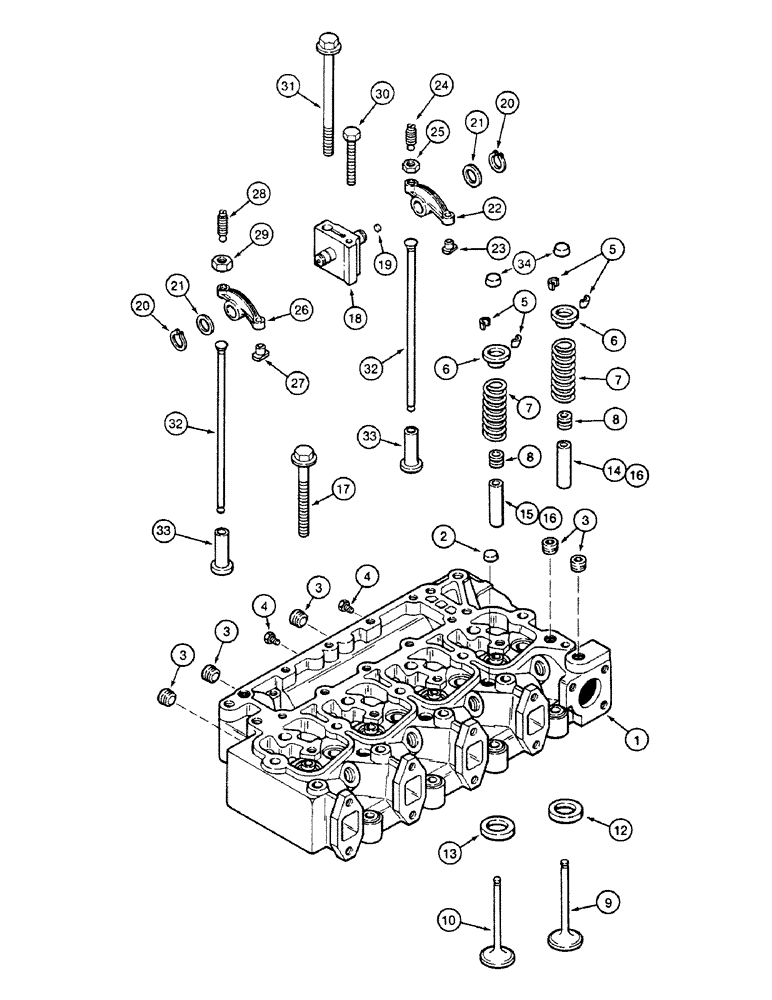

Запчасти Case 580SK (2-40) - VALVE MECHANISM (02) - ENGINE

J920611

HEAD (CYLINDER)

Consists of : 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

With : 2

1шт.

2

A77783

PLUG

21 mm OD

1шт.

3

A77429

PLUG

1/4"

1шт.

4

J906619

PLUG,1/8" - 27

1/8"

1шт.

5

CASJ900250

RETAINER

KEEPER

16шт.

6

J900299

RETAINER

KEEPER

8шт.

7

J900276

VALVE SPRING

8шт.

8

J901097

SEAL

eal

8шт.

9

J920867

VALVE

Intake

4шт.

10

J920868

VALVE

Exhaust

4шт.

12

J906854

SEAT, VALVE

Intake

4шт.

13

J904105

SEAT, VALVE

Exhaust

4шт.

14

J904408

GUIDE

14mm OD Intake

4шт.

15

J904409

GUIDE

14mm OD Exhaust

4шт.

16

J906206

GUIDE

11 mm OD Intake / Exhaust

4шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

M12 x 70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

M12 x 120 mm

10шт.

18

J910814

SUPPORT

With : 19

4шт.

19

J907555

PLUG

1/4-18 PT

1шт.

20

J900242

SNAP RING

8шт.

21

J900245

WASHER

8шт.

22

J910811

ROCKER

ARM Intake With : 23,24,25

4шт.

23

INSERT

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

1шт.

26

J910810

ROCKER

ARM Exhaust With : 27,28,29

4шт.

27

INSERT

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

M8 x 180 mm

4шт.

32

J904679

PUSH ROD

8шт.

33

J907240

TAPPET

8шт.

34

J910412

WEAR PAD

1шт.
