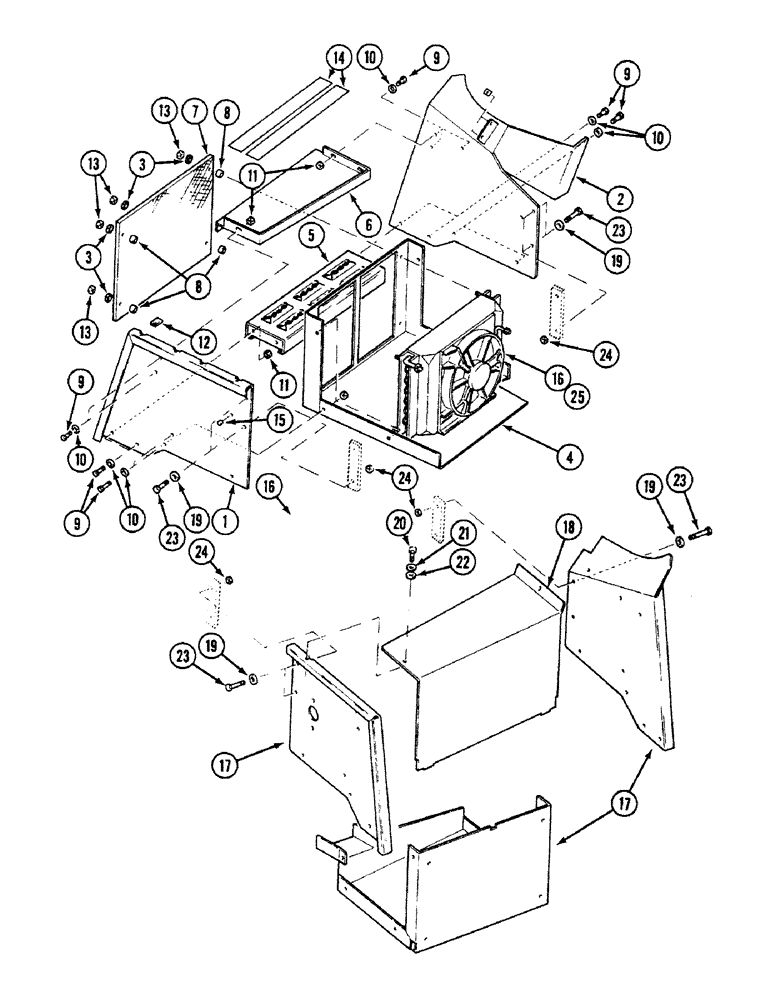

Запчасти Case 580SK (9-240) - PLATFORM - CONDENSER - AIR CONDITIONING, S/N JJH0048585 AND UP (09) - CHASSIS/ATTACHMENTS

1

137062A1

SIDE PLATE

1шт.

2

143387A1

SIDE PLATE

1шт.

3

892-11006

LOCK WASHER,M6

4шт.

4

178578A1

SUPPORT

1шт.

5

120473A1

LARGE PLATE

PLATE, LARGE STEP Lower

1шт.

6

137064A1

LARGE PLATE

PLATE, LARGE STEP Upper

1шт.

7

137060A1

SIEVE

GRILLE

1шт.

8

137252A1

SPACER

4шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

14шт.

10

893-11008

LOCK WASHER,Ext Tooth, M8

28шт.

11

825-1408

NUT,M8, Cl 8

14шт.

12

112275A1

NUT

M8

6шт.

13

825-1406

NUT,M6, Cl 8

4шт.

14

137629A1

ADHESIVE

STRIP

2шт.

15

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

16

138444A1

CONDENSER

, Serial Range: JJH0048585-JJH0049888

1шт.

17

STEP ASSY Left See Figure 9-236

1шт.

18

E49798

PARTITION

DIVIDER

1шт.

19

495-21044

WASHER,3/8"

8шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

24

231-4116

NUT,3/8"-16, GB

3/8"

8шт.

25

194336A1

CONDENSER

Consists Of : 199313A1,199314A1, Start Serial: JJH0048889

1шт.

199313A1

ASSEMBLY

VENTILATOR

1шт.

199314A1

ASSEMBLY

CONDENSOR

1шт.
