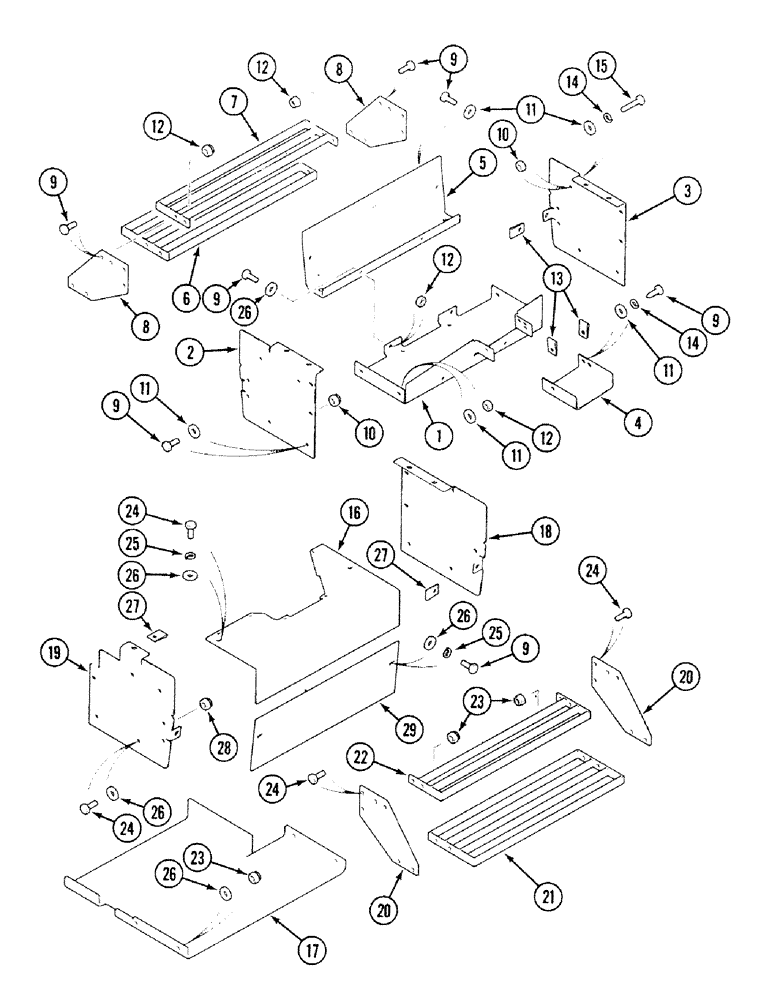

Запчасти Case 580SK (9-234) - BATTERY BOX, TOOL BOX AND STEPS, UP TO S/N JJH0013456 (09) - CHASSIS/ATTACHMENTS

STEP ASSY Right Consists of : 1 - 15

1шт.

1

D149865

LARGE PLATE

PLATE, LARGE

1шт.

2

D149580

LARGE PLATE

PLATE, LARGE

1шт.

3

D149581

LARGE PLATE

PLATE, LARGE

1шт.

4

D149838

SUPPORT

COVER

1шт.

5

D149560

LARGE PLATE

PLATE, LARGE

1шт.

6

D149971

STEP

Lower

1шт.

7

D149972

STEP

Upper

1шт.

8

D148388

SUPPORT

STRAP

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

23шт.

10

131-666

LOCK NUT,3/8"-16, GB

12шт.

11

495-21044

WASHER,3/8"

(7/16")

16шт.

12

425-106

NUT,3/8"-16, Cl 5

7шт.

13

D122307

NUT

3/8"

5шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

Left Consists of : 16 - 29

1шт.

16

E48938

COVER

LID

1шт.

17

D149607

LARGE PLATE

PLATE, LARGE

1шт.

18

D149674

LARGE PLATE

PLATE, LARGE

1шт.

19

D149612

LARGE PLATE

PLATE, LARGE

1шт.

20

D148388

SUPPORT

STRAP

1шт.

21

D149971

STEP

Lower

1шт.

22

D149972

STEP

Upper

1шт.

23

131-666

LOCK NUT,3/8"-16, GB

12шт.

23

231-4116

NUT,3/8"-16, GB

3/8" Use With : E48960

12шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

20шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

495-21044

WASHER,3/8"

(7/16")

12шт.

27

D122307

NUT

3/8"

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

E48937

COVER

LID Lower

1шт.

29

E48960

COVER

LID Lower Sweden Only

1шт.
