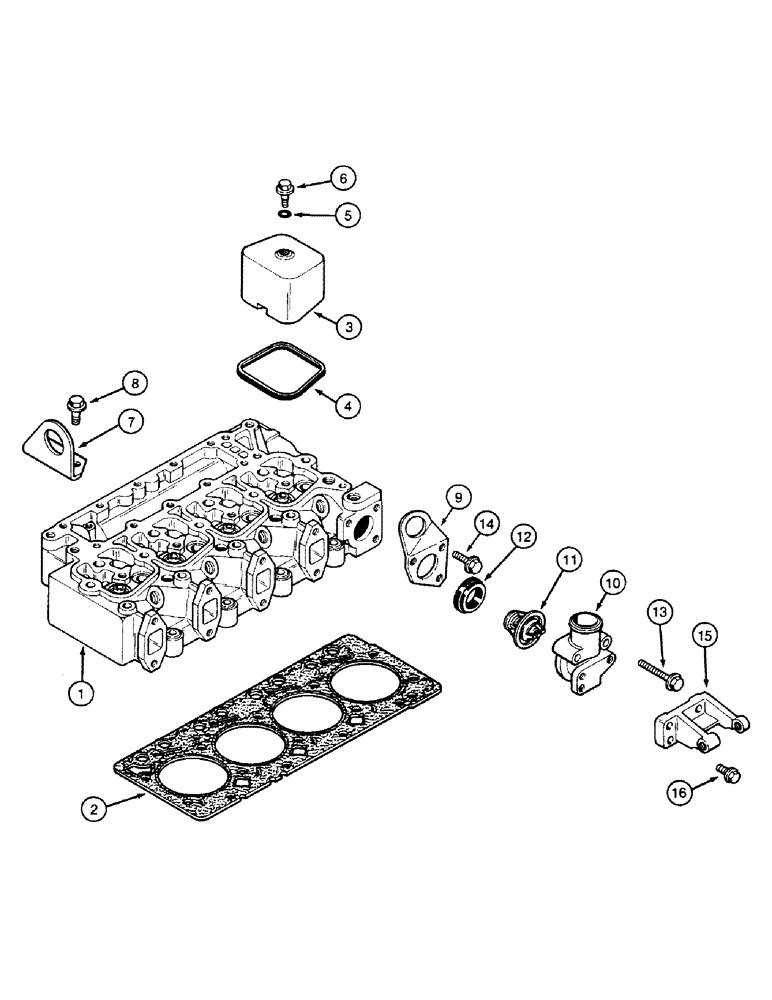

Запчасти Case 580SK (2-38) - CYLINDER HEAD AND COVERS (02) - ENGINE

1

HEAD See Figure : 2-40

1шт.

2

J921393

GASKET

Standard

1шт.

2

J921395

CYLINDER HEAD GASKET

Thicker : 0.23 mm 2 Notches

1шт.

2

J921397

GASKET

Thicker : 0.50 mm 3 Notches

1шт.

3

J902604

COVER

4шт.

4

J902666

GASKET

SEAL

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

6

J907049

BOLT,Hex

M8 x 21 mm

4шт.

7

J908118

BRACKET

Rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

J903757

BRACKET

Front

1шт.

10

J914409

HOUSING

Thermostat

1шт.

A77736

THERMOSTAT

KIT Thermostat Consists of : 11,12

1шт.

11

THERMOSTAT 95 deg C Order : A77736

1шт.

12

J923331

GASKET

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J910713

SUPPORT

Alternator

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
