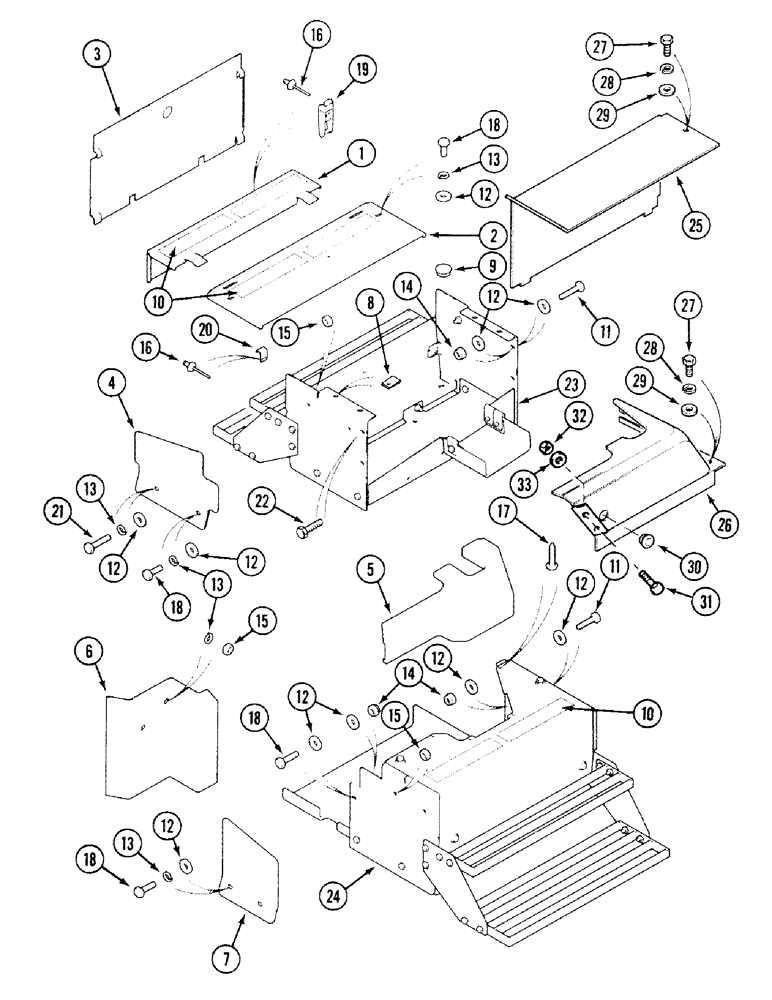

Запчасти Case 580SK (9-232) - BATTERY BOX TOOL BOX AND STEPS (09) - CHASSIS/ATTACHMENTS

1

D149556

COVER

LID

1шт.

2

D149554

COVER

LID

1шт.

3

D149565

LARGE PLATE

PLATE, LARGE DIVIDER, Serial Range: -JJH0013456

1шт.

4

E48934

PROTECTOR

GUARD

1шт.

5

D147520

COVER

, Serial Range: -JJH0013456

1шт.

6

D146883

PROTECTOR

GUARD

1шт.

7

E48935

PROTECTOR

GUARD

1шт.

8

D122307

NUT

3/8"

2шт.

9

1340318C1

PLUG,1" Hole, Nylon

2шт.

10

D55216

PAD,2" x 9"

6шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

12

495-21044

WASHER,3/8"

(7/16")

8шт.

13

492-11038

LOCK WASHER,3/8"

8шт.

14

231-4116

NUT,3/8"-16, GB

3/8"

8шт.

15

425-106

NUT,3/8"-16, Cl 5

6шт.

16

151-539

RIVET,Pop, 3/16" x .450"

3/16 x 13/32"

4шт.

17

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

No. 10 x 1/2"

5шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

19

D131940

LATCH

1шт.

20

D131941

PLATE

STRIKER

1шт.

21

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

23

STEP Left

1шт.

24

STEP Right See Figure : 9-240

1шт.

25

E49798

PARTITION

DIVIDER, Start Serial: JJH0013457

1шт.

26

E49796

COVER

, Start Serial: JJH0013457

1шт.

26

123124A1

COVER

Exigence Version

1шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

29

892-11008

LOCK WASHER,8mm ID

5шт.

30

111478A1

PLUG

, Serial Range: -JJH0046036

1шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

32

825-1408

NUT,M8, Cl 8

2шт.

33

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.
