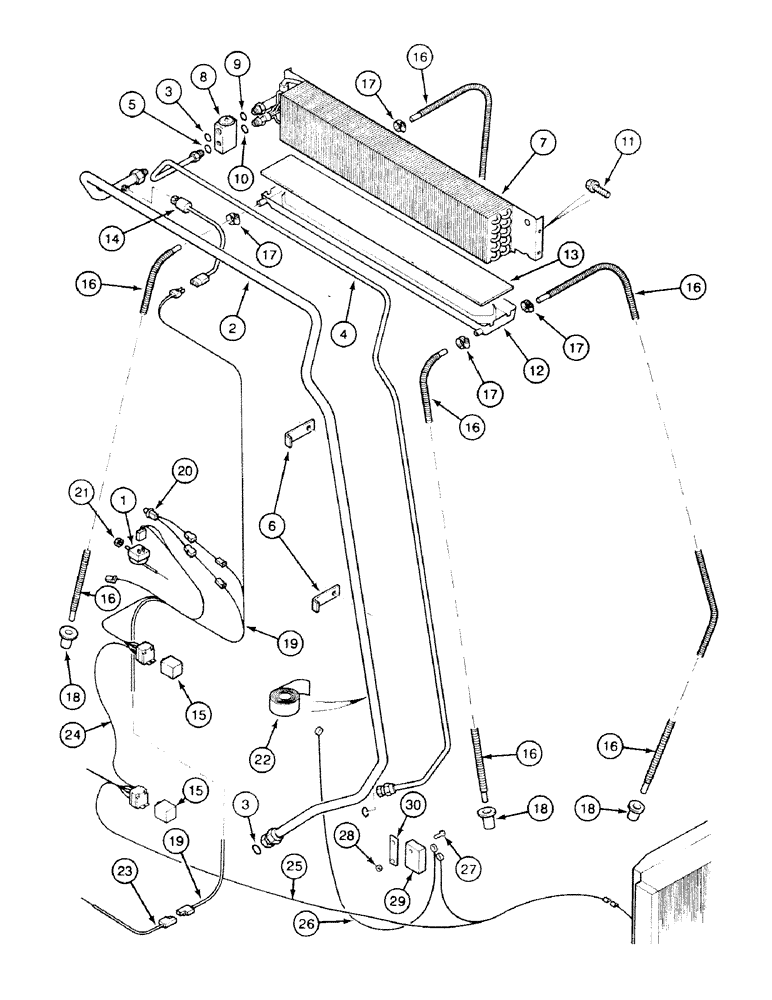

Запчасти Case 580SK (9-228) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

177534A1

PACKAGE

KIT Conversion : R12 / HFC-134A See Figure 9-220 Consists Of : 2,4,8,9,10,14, Serial Range: -JJH0048584

1шт.

177535A1

PACKAGE

KIT Conversion : R12 / HFC-134A See Figure 9-220 Consists Of : 2,4,8,9,10,14, Serial Range: JJH0048585-JJH0049888

1шт.

1

1340287C1

SWITCH

1шт.

2

1977421C1

TUBE

With, Serial Range: -JJH0049888

1шт.

2

175749A1

PIPE

, Start Serial: JJH0049889

1шт.

3

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

4

1977422C1

TUBE

With : 5, Serial Range: -JJH0049888

1шт.

4

175750A1

PIPE

, Start Serial: JJH0049889

1шт.

5

359158R1

O-RING,0.301" ID x 0.07" Width

2шт.

6

R53634

SHIN

CLAMP

2шт.

1340493C3

EVAPORATOR

CORE Consists of : 7 - 10

1шт.

7

1977423C1

EVAPORATOR

CORE

1шт.

8

1990756C1

VALVE

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

11

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

12

112655A1

HOUSING

PAN

1шт.

1974613C2

HOUSING

PAN ASSY Consists of : 12A,13

1шт.

12

1971366C2

CONTAINER

PAN Use With : 1974613C2, Start Serial: JJH0048585

1шт.

13

1974623C1

FOAM

Use With : 1971366C2

1шт.

14

92153C1

SWITCH

, Serial Range: -JJH0049888

1шт.

14

122579A1

SWITCH, A/C LOW PRES

, Start Serial: JJH0049889

1шт.

15

1983394C1

RELAY

, Serial Range: -JJH0049888

1шт.

15

D128310

RELAY

, Start Serial: JJH0049889

2шт.

16

1990999C1

HOSE,11.00 mm ID, 13.30 mm ID x 2286.00 mm

4шт.

17

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

18

F44790

VALVE

END

4шт.

19

E48430

HARNESS

1шт.

20

1964672C1

LIGHT

1шт.

21

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

7/16"

1шт.

22

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

23

E48429

HARNESS

Compressor

1шт.

24

138135A1

ELECTRICAL WIRE

WIRE, Start Serial: JJH0048585

1шт.

25

138133A1

HARNESS

, Start Serial: JJH0048585

1шт.

26

138134A1

ELECTRICAL WIRE

WIRE, Start Serial: JJH0048585

1шт.

27

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

, Start Serial: JJH0048585

1шт.

28

825-1405

NUT,M5, Cl 8

, Start Serial: JJH0048585

1шт.

29

138136A1

FUSE

HOLDER 40A With : 180814A1, Start Serial: JJH0048585

1шт.

180814A1

FUSE

40A

1шт.

30

137630A1

SUPPORT

PLATE, Start Serial: JJH0048585

1шт.
