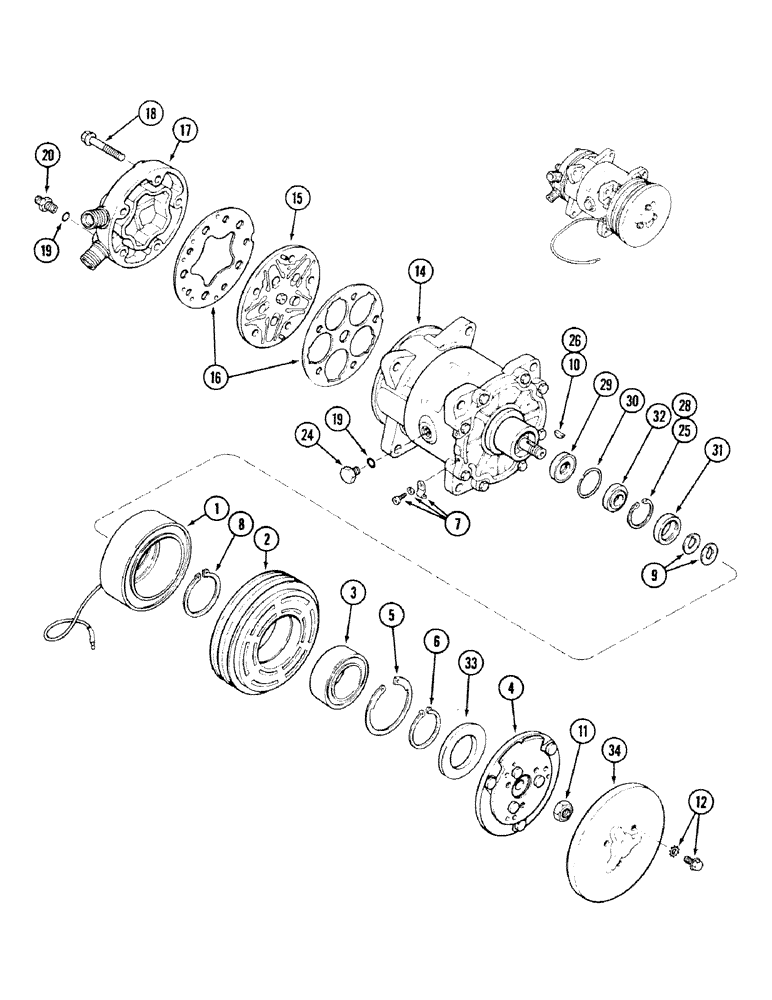

Запчасти Case 580SK (9-226) - COMPRESSOR ASSEMBLY, UP TO S/N JJH0049888 (09) - CHASSIS/ATTACHMENTS

97204C1

COMPRESSOR

Sanky-Sanden Consists of : 1 - 34

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

83935C1

CLUTCH

ASSY

1шт.

1

COIL ASSY 12V

1шт.

2

PULLEY ASSY

1шт.

3

BEARING

1шт.

4

PLATE

1шт.

5

RING Retaining

1шт.

A49673

KIT

accessory Consists of : 6 - 12

1шт.

6

RING retaining

1шт.

7

CLAMP ASSY

1шт.

8

RING retaining

1шт.

9

SHIM

1шт.

10

A49671

KEY

1шт.

11

NUT

1шт.

12

SCREW

1шт.

14

BLOCK ASSY

1шт.

15

PLATE ASSY

1шт.

16

A49668

GASKET KIT

1шт.

17

1958959C1

COVER

HEAD With : 16

1шт.

18

A49669

SCREW,Cylinder

5шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

20

A49670

PORT

UNION

1шт.

24

A49667

PLUG

1шт.

25

A49664

CIRCLIP

RING retaining

1шт.

26

A49671

KEY

1шт.

A49665

SEAL KIT

Consists of : 28 - 31

1шт.

28

A49664

CIRCLIP

RING retaining

1шт.

29

SEAL

1шт.

30

O RING

1шт.

31

RING

1шт.

32

SEAT

1шт.

33

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

1шт.

34

1958961C1

COVER

1шт.
