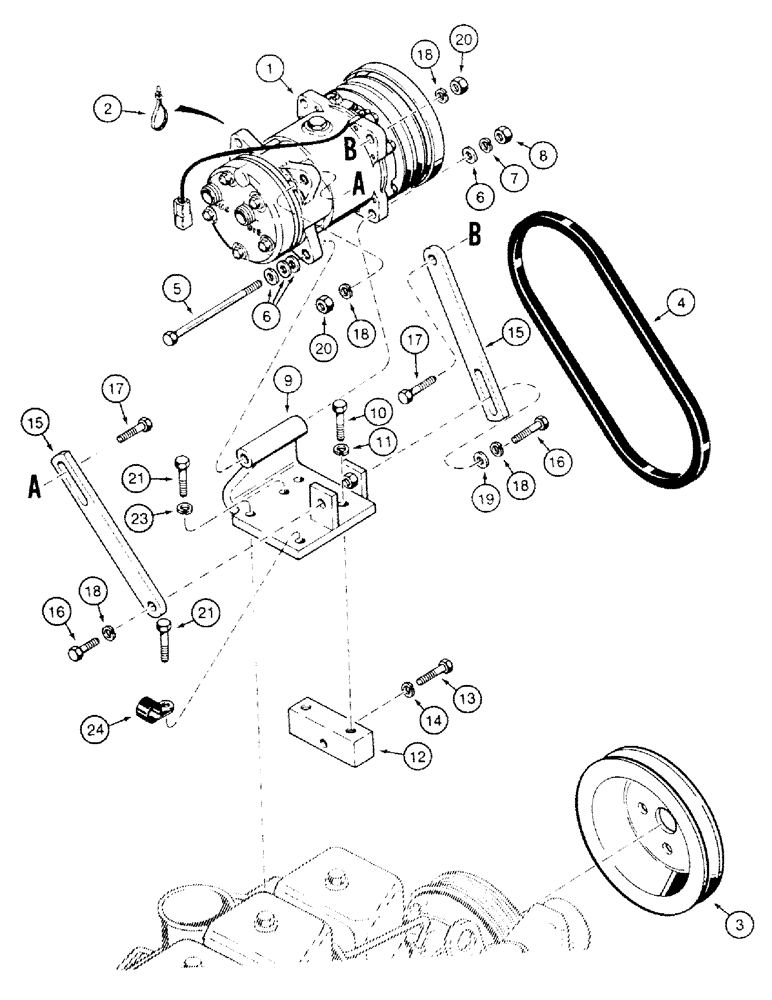

Запчасти Case 580SK (9-224) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97204C1

COMPRESSOR

See Figure 9-226, Serial Range: -JJH0059888

1шт.

1

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

1

1999755C1

COMPRESSOR

, Start Serial: JJH0059889

1шт.

86993462R

REMAN-COMPRESSOR

580SK Start Serial: JJH0059889; Reman For New P/N 1999755C1

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.

3

A189284

PULLEY,151mm OD

1шт.

4

A189285

V-BELT,12.70 mm W x 1060.00 mm L

1шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

A189274

SUPPORT

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

A184614

SUPPORT

BLOCK

1шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

A184932

TENSIONER

BRACE

1шт.

16

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

20

825-1410

NUT,M10, Cl 8

2шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

23

892-11010

LOCK WASHER,M10

2шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.
