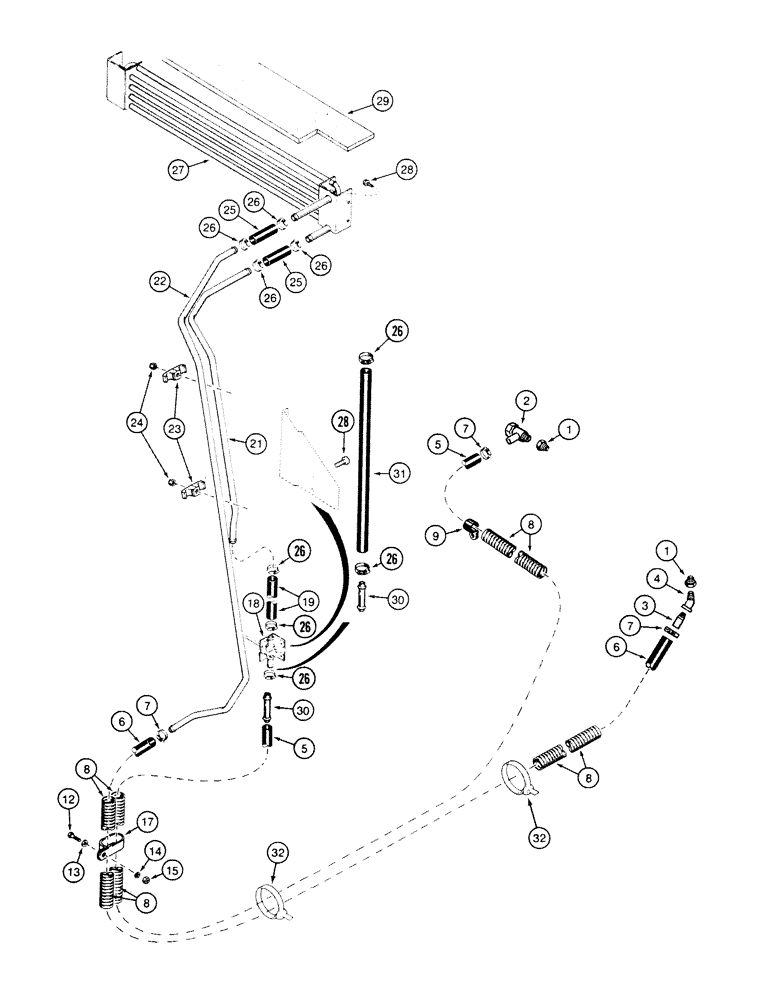

Запчасти Case 580SK (9-216) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

Union

2шт.

2

301803R1

SHUT-OFF VALVE

1шт.

3

L17985

FITTING,3/8" - 18 NPT

LUBRICATOR

1шт.

4

D73369

FITTING

ELBOW 45 deg

1шт.

5

D136068

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HOSE,LARGE 3150 mm, Serial Range: -JJH0015054

1шт.

5

E55023

LARGE HOSE

HOSE,LARGE, Start Serial: JJH0015055

1шт.

6

D132977

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HOSE,LARGE 2950 mm long, Serial Range: -JJH0015054

1шт.

6

E55022

LARGE HOSE

HOSE,LARGE, Start Serial: JJH0015055

1шт.

7

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

3шт.

8

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE

4шт.

9

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

195-525

WASHER,3/8", SAE

1шт.

14

192-21

LOCK WASHER,3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

D132978

CLAMP

1шт.

18

R52483

VALVE

Temperature See Figure 4-16

1шт.

19

R54968

HEATER HOSE,15.50 mm ID x 205.00 mm

1шт.

21

R52504

HEATER TUBE,15.88 mm OD

Inlet

1шт.

22

R52505

HEATER TUBE,15.88 mm OD

Outlet

1шт.

23

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

24

131-206

NUT,3/8"-16

2шт.

25

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

1шт.

26

1954736C1

HOSE CLAMP,#24

6шт.

27

1338312C1

BODY

CORE

1шт.

28

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

8шт.

29

F45407

CURTAIN

SEAL

1шт.

30

S104739

TUBE,0.625" OD x 3" L

1шт.

31

R54647

HOSE

1шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

2шт.
