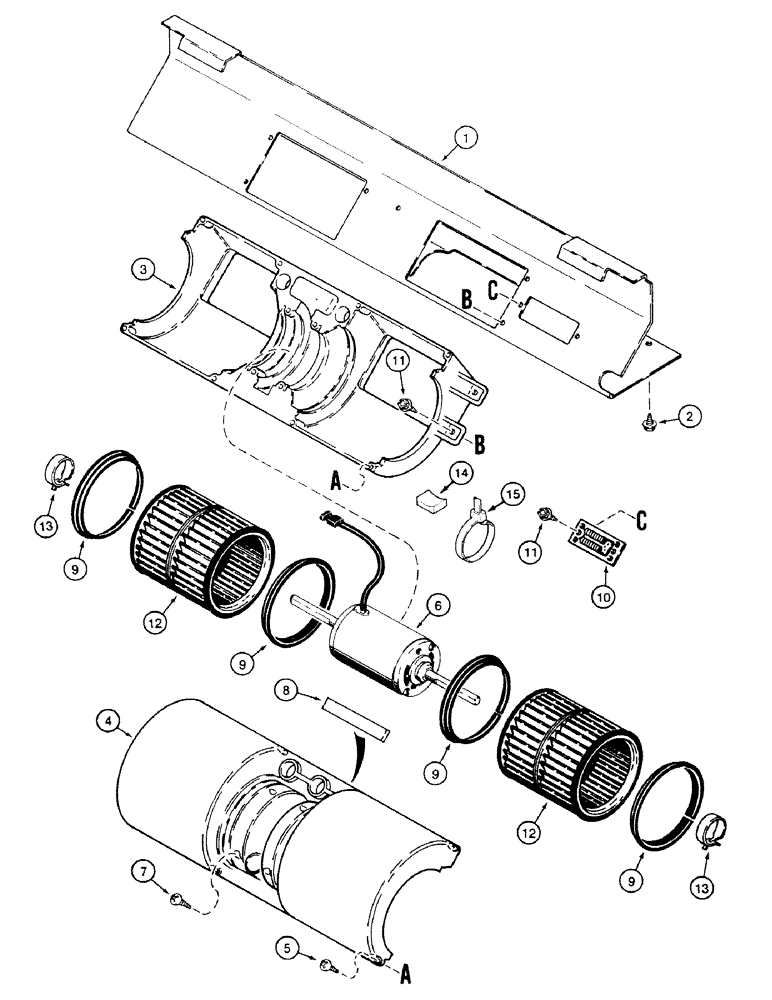

Запчасти Case 580SK (9-214) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

D126301

BRACKET

1шт.

2

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

10 x 13 mm

8шт.

1990972C1

BLOWER,12V, Assembly, Air Conditioning

BLOWER Consists Of : 3 - 7,9,12 - 15

1шт.

3

F64740

HOUSING

Inner

1шт.

4

F64741

HOUSING

Upper

1шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

6

R54415

MOTOR, ELECTRIC

12V

1шт.

7

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

No. 10 x 25 mm

4шт.

8

F64816

FOAM

INSULATOR

1шт.

9

F64739

RING

Retaining

4шт.

10

F44900

RESISTOR

1шт.

11

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 13 mm

8шт.

12

F64935

BLOWER,Fan

BLOWER

2шт.

13

F64936

CLAMP

2шт.

14

R51563

CLIP,ELECTRICAL

1шт.

15

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.
