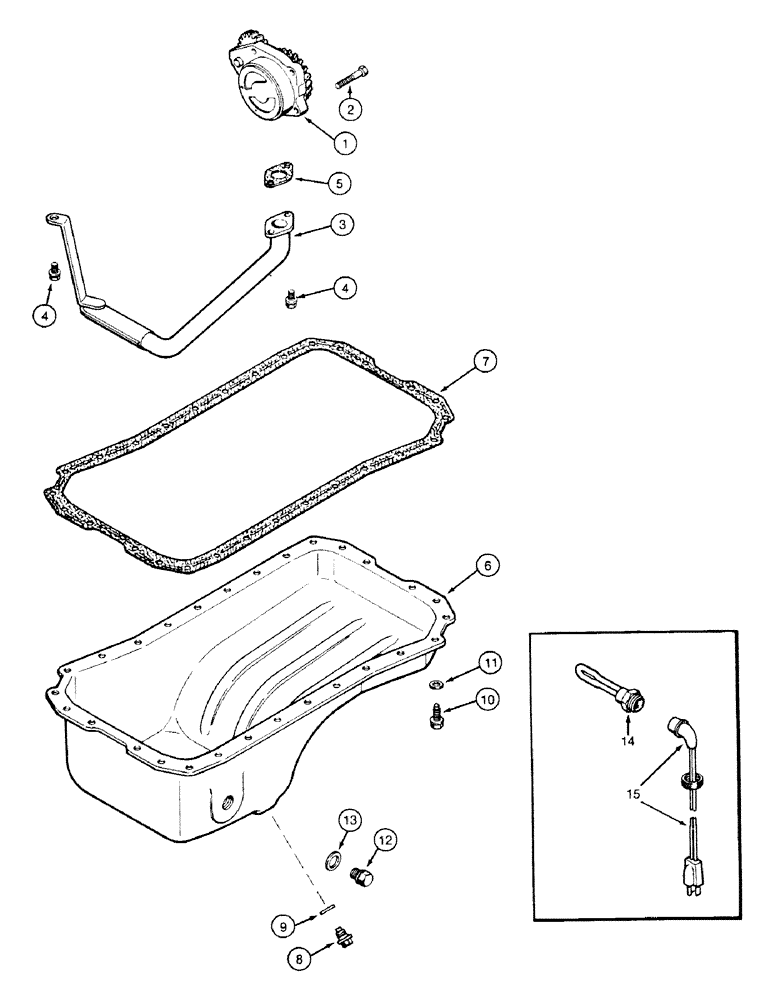

Запчасти Case 580SK (2-36) - OIL PUMP AND OIL PAN (02) - ENGINE

1

J918211

PUMP, ENGINE OIL

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT M8 x 30 mm

4шт.

3

J905206

TUBE,1" OD

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

5

J914383

GASKET

1шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

GASKET Order : A77673

1шт.

8

J924147

PLUG,M18 x 1.5

drain, M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J907537

SPRING WASHER

lock If So Equipped

28шт.

12

J924148

PLUG,M22 x 1.5

M22

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEAL

1шт.

A77673

GASKET KIT

Consists of : 5,7,9

1шт.

A77490

KIT

Heater Consists of : 14,15

1шт.

14

ELEMENT Heater Order : A77490

1шт.

15

J905113

CABLE

1шт.
