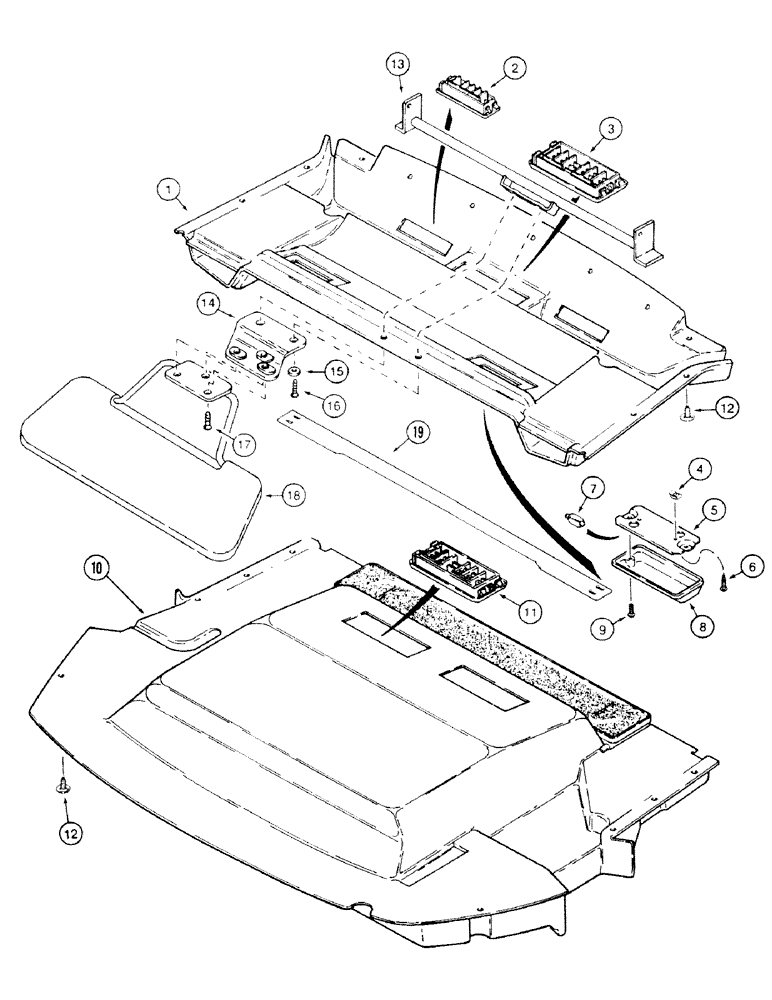

Запчасти Case 580SK (9-206) - CAB HEADLINER, LOUVRES, AND DOME LAMPS (09) - CHASSIS/ATTACHMENTS

1

R54000

LINING

head With Lamp

1шт.

1

187413A1

LINING

head Grey

1шт.

1

E47760

LINING

head Tan Without Lamp

1шт.

2

R54201

GUARD

LOUVRE Defrost

2шт.

3

L109555

GUARD

LOUVRE Ventilation

3шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

E48822

COURTESY LIGHT

DOME LIGHT ASSY 12V, Start Serial: JJH0016849

1шт.

R53755

LIGHT ASSY.,12V

12V Consist of : 5 - 8, Serial Range: -JJH0016848

1шт.

5

BASE

1шт.

6

SCREW

2шт.

7

N14466

BULB

1шт.

8

N14465

LENS

1шт.

9

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

1шт.

10

187414A1

LINING

head Grey

1шт.

10

E47764

LINING

head Tan Rear

1шт.

11

L109555

GUARD

LOUVRE Recirculation and Defrost

4шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

No.10 x 19 mm

17шт.

13

E48858

SUPPORT

Without Air Conditioning

1шт.

13

125605A1

SUPPORT

With Or Without Air Conditioning

1шт.

14

E48780

SUPPORT

1шт.

15

892-1005

LOCK WASHER

WASHER

2шт.

16

814-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8

5 x 8 mm

2шт.

17

E48779

SCREW,CSK, M5 x 0.8 x 14mm

3шт.

18

E47027

VISOR, SUN

1шт.

19

1981928C1

SUPPORT

1шт.
