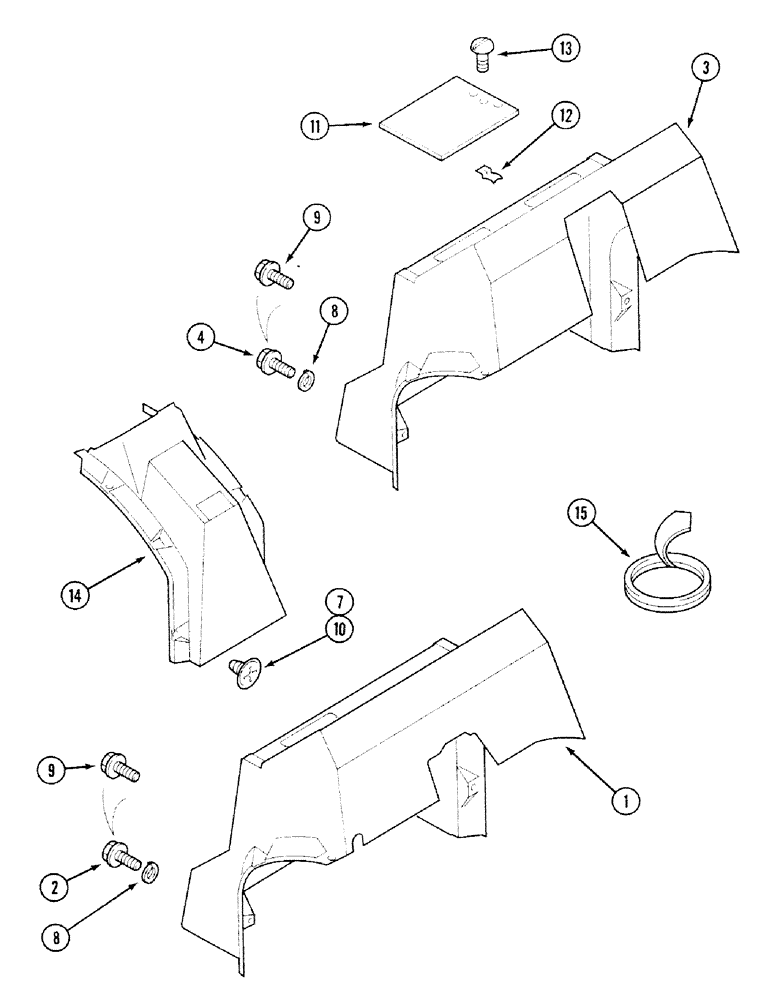

Запчасти Case 580SK (9-204) - CAB CONSOLES, LEFT AND RIGHT (09) - CHASSIS/ATTACHMENTS

1

187417A1

BRACKET

CONSOLE Grey

1шт.

With ROPS Canopy

1шт.

1

117647A1

BRACKET

CONSOLE Tan Instrument Right

1шт.

With ROPS Canopy

1шт.

2

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

3

187418A1

BRACKET

CONSOLE Grey

1шт.

With Cab

1шт.

3

102873A1

BRACKET

CONSOLE Tan Instrument Right

1шт.

With Cab

1шт.

4

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

No. 10 x 19 mm

6шт.

8

495-11034

WASHER,5/16", SAE

6шт.

9

187-1925

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

No. 1/4 x 25 mm

6шт.

10

F45174

SCREW,#10 - 16 x 3/4"

No. 10 x 25 mm

6шт.

11

187436A1

COVER

Grey

1шт.

11

D145601

COVER

Tan Fuse Box

1шт.

12

D145206

CLASP

HOOK

1шт.

13

D145207

BUTTON

KNOB

1шт.

14

187428A1

SUPPORT

PANEL Grey

1шт.

14

D143491

SUPPORT

PANEL Tan Left

1шт.

15

D43403

LINING

SEAL 5" Cut From : F42827

1шт.

F42827

TRIM,2946.4mm L

TRIM 116 mm

1шт.
