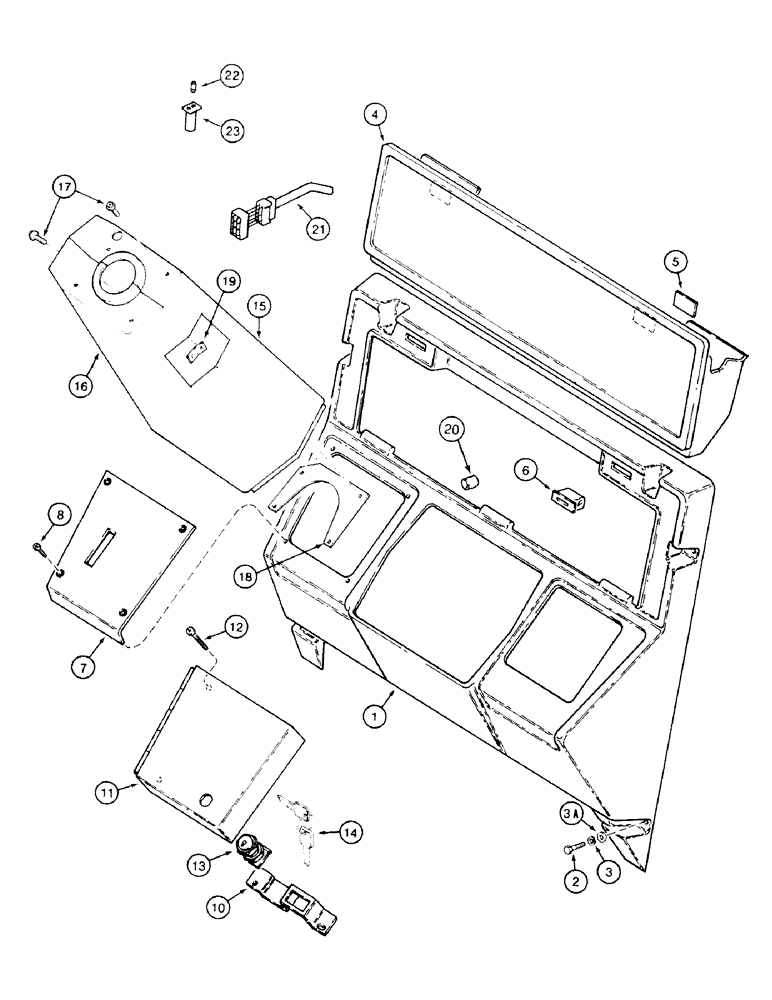

Запчасти Case 580SK (9-202) - FRONT INSTRUMENT PANEL AND COVERS (09) - CHASSIS/ATTACHMENTS

1

187420A1

BRACKET

PANEL

1шт.

Grey

1шт.

1

D134389

BRACKET

PANEL

1шт.

Tan

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

492-11031

LOCK WASHER,5/16"

6шт.

3

495-11034

WASHER,5/16", SAE

6шт.

Grey

1шт.

4

D134256

BOX

COMPARTMENT Operators Manual

1шт.

5

D135903

PLATE

2шт.

6

D127335

CATCH

2шт.

7

187419A1

LARGE PLATE

PLATE, LARGE

1шт.

Grey

1шт.

7

E47702

LARGE PLATE

PLATE, LARGE

1шт.

Tan

1шт.

8

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

10

D140938

BRACKET

1шт.

11

D140937

COVER

1шт.

12

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

3шт.

13

D136738

LOCK

With : 14

1шт.

14

N14440

KEY

2шт.

193372A1

COVER

ASSY Consists of : 15A, 16A - 19

1шт.

Grey

1шт.

E47579

COVER

ASSY Consists of : 15B,16B - 19

1шт.

Tan

1шт.

15

187415A1

COVER

1шт.

Grey

1шт.

15

D143927

COVER

Front

1шт.

Tan

1шт.

16

187416A1

COVER

1шт.

Grey

1шт.

16

D143928

COVER

Rear

1шт.

Tan

1шт.

17

D148607

SCREW,#10 - 16 x 5/8"

6шт.

18

D143710

LARGE PLATE

PLATE, LARGE Top

1шт.

19

D143711

LARGE PLATE

PLATE, LARGE Side

1шт.

20

D35217

BUSHING

SPACER

2шт.

21

E46938

FLASHER SWITCH

Signal See Figure 4-10

1шт.

22

E47100

BULB

112V/3W

1шт.

23

E47088

INDICATOR

Turn

1шт.
