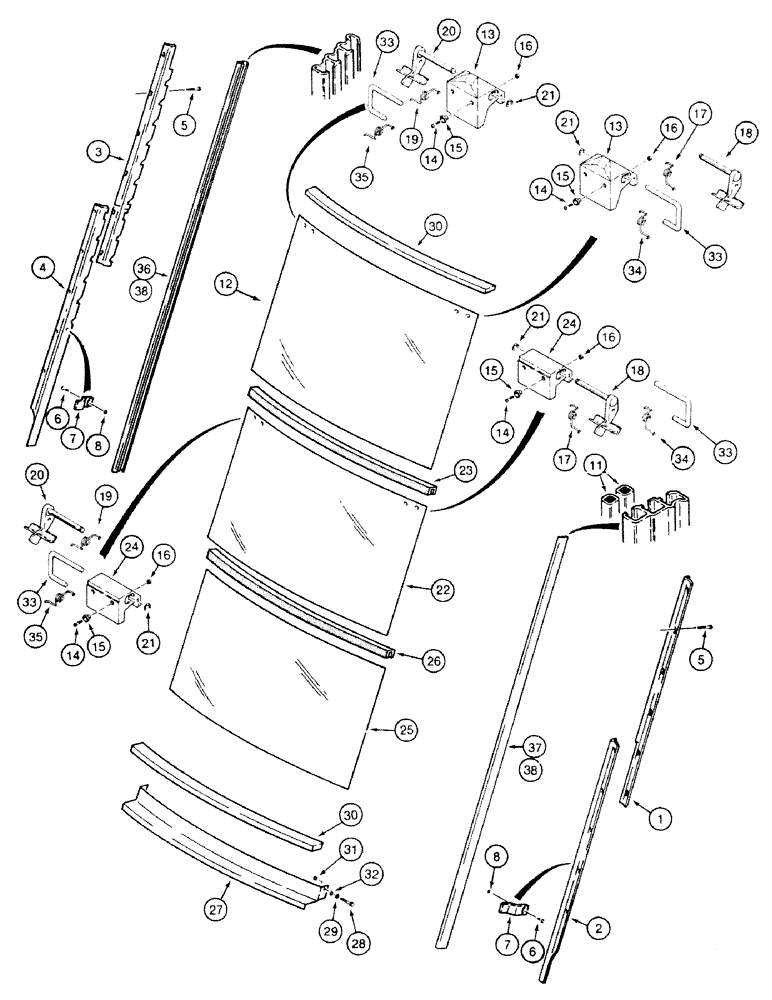

Запчасти Case 580SK (9-198) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

97256C3

SUPPORT

Upper Right

1шт.

2

97257C3

SUPPORT

Lower Right

1шт.

3

97258C3

RETAINER

Upper Left

1шт.

4

97259C3

SUPPORT

Lower Left

1шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

No. 10 x 19 mm

18шт.

6

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

7

D129974

BRACKET

Inner Rear

2шт.

8

131-1351

FLANGE NUT,Flg, 1/4"-20

2шт.

11

R52942

SEAL

1536 mm Right

2шт.

12

E48356

GLASS

Upper Rear Tinted, Serial Range: -JJH0015663

1шт.

12

E49810

GLASS

Upper Rear Tinted, Start Serial: JJH0015664

1шт.

13

97278C1

LATCH

Upper Rear

2шт.

14

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

No. 10 x 25 mm

8шт.

15

E48372

SPACER

8шт.

16

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

8шт.

17

F45398

SPRING

Right Use With : 97254C1

2шт.

18

97254C1

LEVER

Right

2шт.

19

F45399

SPRING

Left Use With : 97255C1

2шт.

20

97255C1

LEVER

Left

2шт.

21

A27795

RING

Retaining

4шт.

22

E48355

GLASS

Centre Rear Tinted

1шт.

23

D126198

SEAL,894mm L

909 mm

1шт.

24

97277C1

LATCH

Centre

2шт.

25

E48354

GLASS

Rear Lower Tinted

1шт.

26

E48388

SEAL

909 mm

1шт.

27

D130002

BRACKET

Horizontal

1шт.

28

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

No.10 x 19 mm

2шт.

29

195-103

WASHER,5/16"

3/8"

2шт.

30

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL 912 mm

2шт.

31

131-4

LOCK NUT,5/16"-18, GB

2шт.

32

492-11031

LOCK WASHER,5/16"

2шт.

33

1344232C1

LEVER

HANDLE

4шт.

34

1990728C1

SPRING

Right Use With : 1344232C1

2шт.

35

1990727C1

SPRING

Left Use With : 1344232C1

2шт.

36

R52939

CHANNEL

Left Stationary, Serial Range: -JJH0015540

1шт.

37

R52940

CHANNEL

Right Retractable, Serial Range: -JJH0015540

1шт.

38

1989960C1

SLIPPER

CHANNEL Replaces : R52939, R52940, Start Serial: JJH0015541

2шт.
