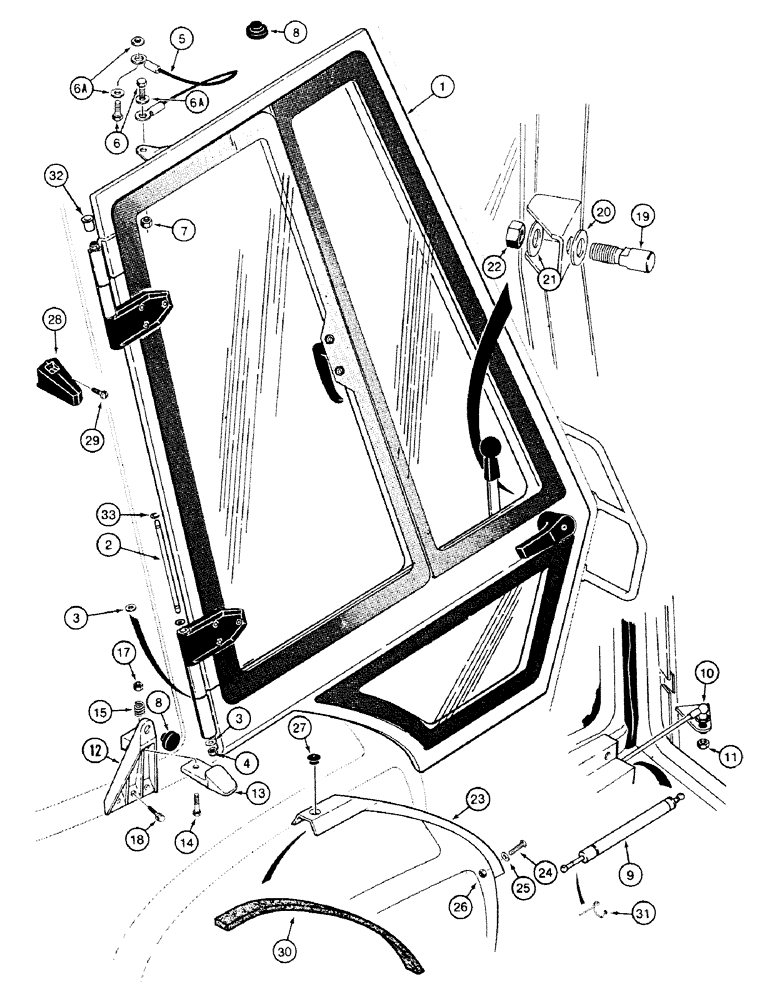

Запчасти Case 580SK (9-196) - LEFT AND RIGHT CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

DOOR See Figures 9-190, 9-194

1шт.

130911A1

PACKAGE

Consists Of : 2,3,32,33

1шт.

2

1340373C1

PIN

2шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

4шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

3/8"

4шт.

5

R53560

CABLE

, Serial Range: -JJH0046993

1шт.

5

133502A1

CABLE

, Start Serial: JJH0046994

1шт.

6

113-174

PREV TORQUE BOLT,Locking, 5/16"-18 x 3/4", G5, Full Thd

2шт.

6a

495-21038

WASHER,5/16"

2шт.

7

230-4215

NUT,5/16"-18, GA

1шт.

8

L60224

BUMPER

2шт.

9

E45902

GAS STRUT

CYLINDER See Figure 9-194

1шт.

10

1340345C1

BALL STUD

BALL PIN STUD

1шт.

11

230-4215

NUT,5/16"-18, GA

1шт.

12

106971A1

SUPPORT

Left

1шт.

12

106972A1

SUPPORT

Right

1шт.

13

106973A1

LATCH

1шт.

15

D36669

SPRING

1шт.

17

131-1180

LOCK NUT,1/4"-20, GA

1шт.

18

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

R52735

LATCH

STRIKER

1шт.

20

F44748

SPRING WASHER

1шт.

21

495-81148

WASHER,7/16" x 1 1/4" x .134"

7/16"

1шт.

22

131-1129

LOCK NUT,7/16"-14, GA

7/16"

1шт.

23

135181A1

RESTRICTOR

BRACKET Left Grey

1шт.

23

1344395C1

SUPPORT

BRACKET Left Tan

1шт.

23

135182A1

SUPPORT

BRACKET Right Grey

1шт.

23

1344394C1

SUPPORT

BRACKET Right Tan

1шт.

24

1977816C1

SCREW

1/4 x 19 mm

5шт.

25

195-81026

WASHER,.266" x 13/16" x .079"

17/64"

4шт.

26

131-1180

LOCK NUT,1/4"-20, GA

4шт.

27

353-405

PLUG,Dome, .562" hole, Nylon

9/16"

1шт.

28

112660A1

STOP

1шт.

29

1977816C1

SCREW

1/4 x 19 mm

1шт.

30

1343949C1

DOOR SEAL

1шт.

31

E46492

CLIP

1шт.

32

107949A1

BUSHING

4шт.

33

103-3431

SNAP RING,#31, Ext, E-Type

4шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
